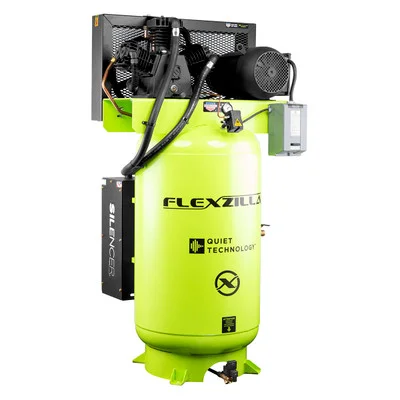

Flexzilla FS07V080Y1 Air Compressor With Silencer, Stationary

Description

Flexzilla Air Compressor with Silencer, Stationary, Splash Lubricated, 7.5 HP, 80 Gallon, 230 Volt, 1-Phase, 2-Stage, Vertical, ZillaGreen

Let’s face it, standard air compressors are LOUD. All this NOISE interferes with workplace communication, lowers productivity on the job, and increases risk of hearing loss. Fortunately, Flexzilla brings quiet back to the workplace.

Features:
Quiet Technology – Flexzilla air compressors feature low RPM pumps and motors that reduce high frequency noise levels while increasing CFM output. Flexzilla air compressors are the quietest on the market emitting operating noise no louder than a normal conversation.
Silencer – Flexzilla stationary air compressors include the Silencer, a patented noise suppression system that reduces low frequency noise levels. Silencer dissipates compressor intake noise by channeling the air through a series of baffles, reducing dBA levels up to 25%. Note: Every 10 decibels represents a 50% noise change.
Motor – Open drip proof (ODP)
Heavy Steel OSHA Approved Belt Guards
Solid Steel Connecting Rods
Dual 2B Style Industrial Grade Drive Belts
Solid Cast Iron Crankcase with Oil Sight Glass – NOT Aluminum. Steel crankshaft with tapered roller bearings for solid pump support
Components – B-style belts to ensure smooth operation. Top quality pressure switch, 100% brass valves, ASME certified tank, 13G steel with premium grade expanded metal belt guards
Magnetic Starter – Standard on all splash lubricated models. Provides overload protection during startup
Automatic Tank Drain – Automatically removes condensation in set intervals
Components – We use B-style belts to ensure smooth operation. Top quality pressure switch, 100% brass valves, ASME Certified Tank, 13G Steel with premium grade expanded metal belt guards
Assembled in USA of US and global components
Tank manufactured in USA

Specifications:

• Retail Packaging: No
• Color: ZillaGreen
• Application: Air
• Type: Stationary
• Motor HP: 7.5 HP
• CFM @ 100 psi: 25
• Max psi: 175
• Pump RPM: 850
• Pump Type: 2-Stage
• Pump Splash Or PressureLubed: Yes 3-CYL
• Voltage: 230V, 1-Phase
• Tank Size: 80 Gal.
• Tank Orientation: Vertical
• Tank Outlet: 3/4 in. NPT
• Tank Drain: Automatic
• 1-Phase Connection: Yes
• 3-Phase Connction: No
• Unit Weight: 833
• Unit Length: 48
• Unit Width: 45
• Unit Height: 83
• Std. Pack Qty: 1
• UPC: 815002017044
• Harmonization: 8414.80.16.90
• COO: United States
• Warranty: 4 Year (1 Year Parts and Labor: Additional 3 Year Extended Parts Warranty)

Product Information

Flexzilla Air Compressor Datasheet
