FiTech UltraRam 650HP Small Block 340LPH Pump, CDI & Regulator (96331)

Description

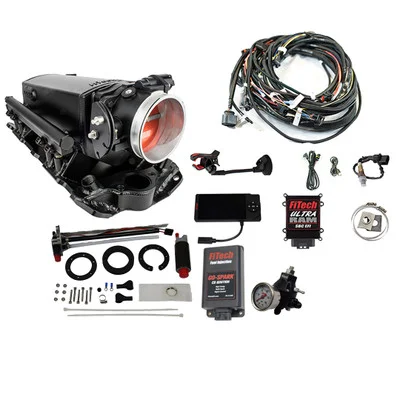

The FiTech UltraRam 650HP Small Block 340LPH Pump, CDI & Regulator (96331) is a comprehensive solution for upgrading your carbureted small block Chevy engine to modern electronic fuel injection. This kit provides everything needed for a complete conversion, supporting up to 650 horsepower. It includes the Ultra Ram intake manifold, a 92mm throttle body, an in-tank fuel pump module, a fuel pressure regulator, and a CDI ignition system. The self-learning ECU simplifies tuning, ensuring optimal engine performance.

KEY FEATURES AND BENEFITS:

• Supports up to 650 horsepower, enhancing engine performance.
• Multi-port fuel injection for improved fuel delivery and efficiency.
• In-tank fuel pump module simplifies installation and fuel system integration.
• Self-learning ECU automatically adjusts fuel and air mixture for optimal performance.
• CDI ignition system provides a strong and consistent spark, improving combustion.
• Complete kit includes all necessary components for a seamless conversion.
• Timing control compatible, allowing for precise ignition tuning.
• Power adder compatible for forced induction applications.
• User tunable via a 4.5 inch display.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Multi-port
• Throttle Body: 92mm, GM LS2 4-bolt flange
• Fuel Pump: In-tank, 340 lph
• Injector Size: 36 lbs./hr.
• ECU: Included, self-learning
• Ignition: CDI, Go-Spark
• Intake: Aluminum, black anodized
• Fuel Type: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

• Remove Existing Carburetor and Intake: Disconnect fuel lines, wiring, and remove the existing carburetor and intake manifold.
• Install Ultra Ram Intake: Mount the FiTech Ultra Ram intake manifold onto the engine block, ensuring proper gasket placement.
• Install Fuel Pump Module: Place the in-tank fuel pump module into the fuel tank, connecting the fuel lines and wiring.
• Mount Throttle Body and Sensors: Attach the 92mm throttle body to the intake, and install the MAP, IAT, and TPS sensors.
• Connect Wiring Harness: Connect the main wiring harness to the ECU and all sensors, ensuring secure connections.
• Install CDI Ignition: Mount the Go-Spark CDI ignition box and connect the wiring to the distributor.
• Connect Fuel Pressure Regulator: Install the fuel pressure regulator and connect the fuel lines.
• Mount ECU and Display: Secure the ECU and connect the handheld display for tuning.
• Initial Setup: Input engine specifications into the handheld display and start the engine.
• Self-Learning Process: Allow the ECU to self-learn and fine-tune the fuel and air mixture.
• Final Adjustments: Make any necessary adjustments using the handheld display.

BENEFITS OF USING THE FITECH ULTRARAM 650HP SMALL BLOCK 340LPH PUMP, CDI & REGULATOR (96331):

• Improved engine performance and horsepower output.
• Enhanced fuel efficiency and throttle response.
• Simplified engine tuning with self-learning ECU.
• Consistent and reliable engine operation.
• Modernization of classic engines with EFI technology.
• Simplified fuel system installation with the in-tank pump system.
• Improved cold start performance.

FEATURES:

• Sheet metal intake manifold design.
• Cast aluminum throttle body construction.
• Adjustable fuel pressure regulator with gauge.
• Multiple spark ignition below 2,500 RPM.
• Compatibility with various distributor types.
• Fuel rails pre-installed.
• Remote mount ECU.
• Oxygen sensor and bung kit included.
• Mini USB cable included.
• Vent port on fuel pump module.
