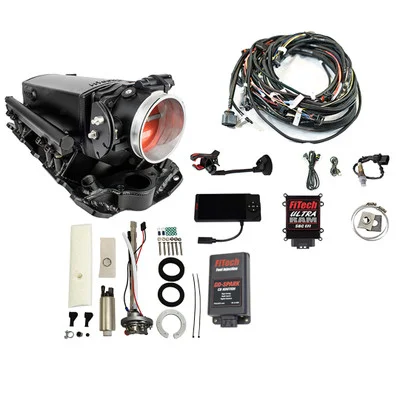

FiTech Ultra Ram 650 HP Small Block EFI w/ 340 LPH Pump & CDI (96231)

Description

The FiTech Ultra Ram 650 HP Small Block EFI w/ 340 LPH Pump & CDI (96231) offers a complete solution for converting your carbureted Chevy small block engine to modern electronic fuel injection. This kit includes all essential components for a seamless upgrade, providing improved performance, efficiency, and drivability. The system supports up to 650 horsepower and features self-learning technology, simplifying the tuning process.

KEY FEATURES AND BENEFITS:

• Complete EFI Conversion: Includes intake manifold, throttle body, ECU, fuel pump, and ignition.
• 650 HP Support: Designed for engines producing up to 650 horsepower.
• Multi-Port Fuel Injection: Provides precise fuel delivery for enhanced performance.
• Self-Learning Technology: Simplifies tuning and optimizes engine performance.
• In-Tank Fuel Pump: Integrated 340 LPH pump with regulator for reliable fuel delivery.
• CDI Ignition: Go-Spark CDI ignition for improved spark and combustion.
• Comprehensive Kit: Includes all necessary wiring, sensors, and hardware.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Multi-port
• Timing Control: Compatible
• Power Adder: Compatible (Forced induction)
• ECU: Included
• Fuel Pump: Included (In-tank, 340 LPH)
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum
• Throttle Body: 92mm, cast aluminum
• Injector Size: 62 lbs./hr.

HOW TO USE:

• Remove the existing carburetor and intake manifold.
• Install the FiTech Ultra Ram intake manifold and throttle body.
• Mount the ECU in a suitable location.
• Install the in-tank fuel pump assembly into the fuel tank.
• Connect the wiring harness to the ECU, sensors, injectors, and ignition.
• Install the Go-Spark CDI ignition box and connect to the distributor.
• Mount the wideband oxygen sensor in the exhaust system.
• Connect the handheld controller to the ECU.
• Input engine specifications into the handheld controller.
• Start the engine and allow the self-learning system to optimize the fuel and ignition settings.

BENEFITS OF USING THE FITECH ULTRA RAM 650 HP SMALL BLOCK EFI W/ 340 LPH PUMP & CDI (96231):

• Improved Engine Performance: Enhanced power, torque, and throttle response.
• Increased Fuel Efficiency: Precise fuel delivery optimizes fuel consumption.
• Simplified Tuning: Self-learning technology minimizes tuning complexity.
• Enhanced Ignition: Go-Spark CDI ignition improves combustion and reduces misfires.
• Complete Solution: All-in-one kit simplifies the EFI conversion process.
• Modernizes older engines.

FEATURES:

• Sheet metal intake manifold with black anodized finish.
• 92mm cast aluminum throttle body with GM LS2 4-bolt flange.
• 62 lbs./hr. fuel injectors pre-installed on fuel rails.
• 340 LPH in-tank fuel pump with integrated 58 psi regulator.
• Go-Spark CDI ignition system for improved spark quality.
• 4.5-inch touchscreen display for monitoring and adjustments.
• Wideband oxygen sensor for accurate air/fuel ratio readings.
• Speed density (MAP-N) metering for reliable performance.
• Comprehensive wiring harness and sensor package.
• Compatibility with various fuel types, including gasoline, alcohol, methanol, and flex fuel.
