FiTech Ultra Ram 650 HP Chevy Small Block EFI w/In-Tank Module (36331)

Description

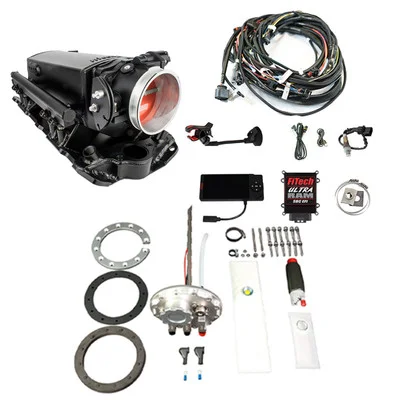

The FiTech Ultra Ram 650 HP Chevy Small Block EFI w/In-Tank Module (36331) provides a complete solution for converting carbureted small block Chevy engines to modern electronic fuel injection. This kit is designed for performance enthusiasts seeking improved drivability and power. It includes the Ultra Ram intake manifold, a “Go Fuel” in-tank fuel pump module, and a self-tuning ECU, simplifying the conversion process.

KEY FEATURES AND BENEFITS:

• Converts carbureted SBC engines: Upgrades to EFI for enhanced performance.
• Supports up to 650 horsepower: Ideal for high-performance applications.
• “Go Fuel” in-tank fuel pump: Ensures convenient fuel delivery.
• Self-tuning ECU: Simplifies setup and tuning processes.
• Ultra Ram intake manifold: Provides improved airflow for better performance.
• Complete kit: Includes all necessary components for installation.

SPECIFICATIONS:

• Maximum horsepower: 650 HP
• Injection style: Multi-port
• Fuel pump flow rating: 340 LPH
• Throttle body diameter: 92mm
• Fuel system: In-tank, returnless
• ECU: Included, self-tuning
• Intake material: Aluminum
• Fuel compatibility: Gasoline, Alcohol, Methanol, Flex fuel (E85)

HOW TO USE:

• Remove: Disconnect and remove the existing carburetor and intake manifold.
• Install: Place the FiTech Ultra Ram intake manifold onto the engine.
• Fuel pump: Install the “Go Fuel” in-tank fuel pump module into the fuel tank.
• Mount ECU: Secure the FiTech ECU in an appropriate location.
• Connect wiring: Link the wiring harness to the ECU, sensors, and injectors.
• Oxygen sensor: Install in the exhaust system for monitoring.
• Touchscreen display: Connect to the ECU for configuration.
• Input specifications: Enter engine specifications into the touchscreen display.
• Start engine: Run the engine and allow the ECU to self-tune.
• Fine-tune: Make additional adjustments as needed using the touchscreen display.

BENEFITS OF USING THE FITECH ULTRA RAM 650 HP CHEVY SMALL BLOCK EFI W/IN-TANK MODULE (36331):

• Improved engine performance: Enhanced throttle response and power output.
• Increased fuel efficiency: More efficient operation compared to carburetors.
• Simplified tuning: Utilizes self-learning technology for easy adjustments.
• Elimination of carburetor issues: Reduces common problems associated with carbureted setups.
• Modernized control: Provides advanced engine management capabilities.
• Simplified installation: Streamlined fuel system setup for ease of use.

FEATURES:

• Sheet metal intake: Durable construction for reliable performance.
• CNC machined billet fuel module top: Ensures precision and durability.
• -6AN ORB fittings: Provides secure fuel connections.
• Adjustable fuel pump positioning: Accommodates various tank depths.
• Internal fuel pressure regulation: Maintains consistent fuel pressure.
• Touchscreen display: Offers real-time engine monitoring.
• Wideband oxygen sensor: Included for accurate air-fuel ratio readings.
• Capable of forced induction: Supports turbocharged or supercharged applications.
• Flexible fuel compatibility: Works with a range of fuel types.
• Remote mounted ECU: Allows for flexible installation options.
