Description

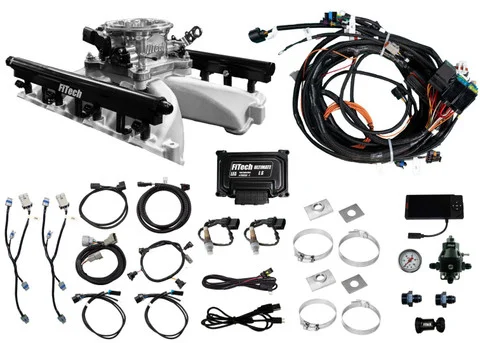

The FiTech Ultra Port LS 750 HP EFI Brilliant System w/ LS1 Intake (37016) is a comprehensive electronic fuel injection (EFI) solution designed to enhance the performance and control of LS engines. This kit provides a complete upgrade to multi-port fuel injection, supporting up to 750 horsepower. It includes an LS1-style intake manifold, fuel rails, injectors, an external Retro Port LS ECU, sensors, and a handheld touchscreen monitor. This system is engineered for those seeking precise engine management and improved drivability.
KEY FEATURES AND BENEFITS:
- Multi-Port Injection: Enhances fuel control and adjustability, resulting in improved fuel burn and throttle response.
- Complete Kit: Includes all necessary components for a comprehensive EFI upgrade, simplifying the installation process.
- Transmission Control: Provides electronic control for compatible transmissions, improving overall vehicle performance.
- Self-Learning Software: Simplifies tuning and setup, adapting to various engine configurations for optimal performance.
- Handheld Touchscreen Monitor: Allows for easy adjustments and monitoring of engine parameters.
- Universal 4-Barrel Throttle Body Design: The 4150 flange ensures compatibility with a wide range of intake manifolds.
- High Horsepower Support: Designed to support up to 750 horsepower, catering to high-performance applications.
SPECIFICATIONS:
- Maximum Horsepower: 750 HP
- Injection Style: Multi-port
- Timing Control Compatible: Yes
- Power Adder Compatible: Yes (Boost/Nitrous oxide)
- ECU Included: Yes
- Fuel Pump Included: No
- Transmission Controller Included: Yes
- Metering Style: Speed density (MAP-N)
- Intake Manifold Included: Yes (LS1 style, Aluminum, Cast)
- Throttle Body: 4-barrel square bore, 1000 CFM, 44mm venturi
- Injectors: 55 lbs./hr
- Fuel Type: Alcohol, Gasoline, Methanol, Flex
- Compatibility: LS Engine blocks with standard deck height
HOW TO USE:
- Preparation: Disconnect the vehicle’s battery and remove the existing intake manifold and fuel system.
- Installation of Intake Manifold: Install the included LS1 intake manifold, ensuring proper sealing.
- Fuel Rail and Injector Installation: Mount the fuel rails and install the injectors into the intake manifold.
- Sensor Installation: Install the MAP, IAC, IAT, TPS, and oxygen sensors as per the provided instructions.
- ECU and Wiring Harness Connection: Connect the ECU and wiring harness, ensuring all connections are secure.
- Throttle Body Installation: Mount the 4-barrel throttle body onto the intake manifold.
- Handheld Monitor Connection: Connect the handheld touchscreen monitor to the ECU.
- Fuel System Connection: Connect the necessary fuel lines and ensure a high-flow fuel pump is in place.
- Initial Setup: Use the handheld monitor to input initial engine parameters and start the self-learning process.
- Tuning and Adjustments: Fine-tune the system using the handheld monitor to optimize performance.
BENEFITS OF USING THE FITECH ULTRA PORT LS 750 HP EFI BRILLIANT SYSTEM W/ LS1 INTAKE (37016):
- Improved engine performance and horsepower output.
- Enhanced fuel control and efficiency.
- Precise engine management through the ECU.
- Simplified tuning and adjustments with the self-learning software and handheld monitor.
- Seamless integration with compatible transmissions.
- Modernized fuel delivery system.
FEATURES:
- External Retro Port LS ECU for advanced control.
- Magnetic mount for the handheld touchscreen.
- Ability to run multiple fuel types.
- 44mm Venturi diameter.
- 1000 CFM airflow rate.
- Complete wiring harness included.
- Sensors Included: MAP, IAC, IAT, TPS, Oxygen.
