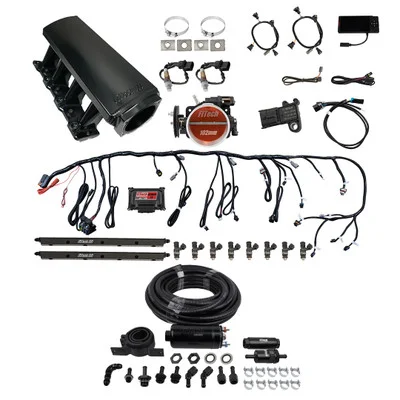

FiTech Ultimate Tall LS1/LS2/LS6 750HP + In-line Fuel Pump Kit (71008)

Description

The FiTech Ultimate Tall LS1/LS2/LS6 750HP + In-line Fuel Pump Kit (71008) paired with an Inline Fuel Pump fuel delivery kit provides a complete self-tuning electronic fuel injection system. Designed for LS engines, this kit caters to both DIY enthusiasts and professional tuners, offering a straightforward path to modernizing your engine’s induction system. This system includes all necessary components for a seamless installation, getting your LS engine running quickly and efficiently.

KEY FEATURES AND BENEFITS:

• True self-tuning EFI system, eliminating the need for complex manual adjustments.
• Supports 24X and 58X crank and cam signals.
• Provides sequential fuel and spark control with individual cylinder trim.
• Compatible with car and truck coils; uses Bosch wideband control for accurate air-fuel ratio management.
• On-the-fly programmable target AFR and timing, along with knock sensor control for real-time adjustments.
• Designed to accommodate custom camshafts and includes a plug-and-play wiring harness.
• Handheld controller with a color touchscreen simplifies tuning and monitoring.
• Black anodized fabricated aluminum intake manifold, 55 lb./hr. injectors, high volume fuel rails, and 102mm billet aluminum throttle body ensure optimal performance.
• Included in-line fuel pump kit provides a 255 L/PH external fuel pump, fuel hoses, and billet fuel filters.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes
• Transmission Controller: No
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum
• Intake Finish: Black Anodized
• Injector Size: 55 lbs/hr
• Throttle Body: 102mm
• Fuel Pump: 255 L/PH external
• Supported Fuels: Alcohol, Gasoline, Methanol, Flex Fuel

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing intake and fuel system.
• Installation: Mount the new intake manifold and throttle body.
• Fuel System: Install the in-line fuel pump, fuel filters, and connect the fuel lines.
• Wiring: Connect the plug-and-play wiring harness to the engine sensors and coils.
• Sensors: Install the included MAP, TPS, IAC, and O2 sensors.
• ECU Setup: Connect the handheld controller and follow the on-screen instructions for initial setup.
• Initial Start: Start the engine and allow the self-tuning system to adjust parameters.
• Fine Tuning: Use the handheld controller to make any necessary adjustments.

BENEFITS OF USING THE FITECH ULTIMATE TALL LS1/LS2/LS6 750HP + IN-LINE FUEL PUMP KIT (71008):

• Simplifies the transition to electronic fuel injection, offering improved performance and fuel efficiency.
• Self-tuning feature reduces the need for extensive tuning knowledge, making it accessible to a wide range of users.
• Complete kit ensures all necessary components are included, minimizing installation time.

FEATURES:

• Supports sequential fuel and spark control.
• Compatible with 24X and 58X crank and cam signals.
• Includes a 102mm billet aluminum throttle body.
• Provides knock sensor control.
• Features on-the-fly programmable AFR and timing.
• Includes a handheld color touchscreen controller.
• Utilizes a plug-and-play wiring harness.
• Comes with a 255 L/PH external fuel pump.
• Uses 55 lbs/hr fuel injectors.
• Features a black anodized intake manifold.
