Description

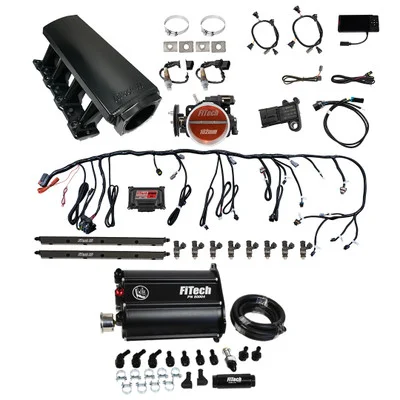

The FiTech Ultimate LS Tall LS1/LS2/LS6 750HP w/Force Fuel (75208) provides a comprehensive solution for enhancing LS engine performance. This kit combines high-flow components with intelligent self-learning technology, ensuring efficient fuel delivery and simplified tuning. The integrated Force Fuel system addresses fuel supply issues, making it a robust choice for performance applications.
KEY FEATURES AND BENEFITS:
- Power Output: Designed for LS engines, offering up to 750 horsepower.
- Throttle Body and Injectors: Equipped with a 102mm throttle body and 55 lbs./hr. injectors for optimal airflow and fuel delivery.
- Self-Learning ECU: Simplifies tuning with capabilities for on-the-fly adjustments.
- Consistent Fuel Pressure: The Force Fuel system maintains steady fuel pressure, preventing fuel starvation.
- Complete Kit: Includes all necessary components for installation, making it user-friendly.
SPECIFICATIONS:
- Maximum horsepower: 750 HP
- Throttle body: 102mm
- Injectors: 55 lbs./hr.
- ECU: Self-learning, touchscreen programmable
- Fuel system: Force Fuel reservoir
- Compatibility: LS engines (24X and 58X crank/cam)
- Fuel pump flow rating: 340 lph
- Intake material: Aluminum, black anodized
HOW TO USE:
- Installation: Begin by mounting the intake manifold, throttle body, and fuel rails onto the LS engine.
- Wiring: Connect the plug-and-play wiring harness to the engine sensors and ECU.
- Fuel System Setup: Install the Force Fuel reservoir and connect the necessary fuel lines.
- Sensor Connection: Attach the oxygen, MAP, IAT, and TPS sensors to their respective locations.
- ECU Setup: Mount the touchscreen controller and connect it to the ECU.
- Initial Start: Start the engine and allow the self-learning ECU to calibrate.
- Tuning: Make on-the-fly adjustments to air-fuel ratio (AFR) and timing using the touchscreen interface.
- Data Logging: Utilize the data logging feature for performance analysis and adjustments.
BENEFITS OF USING THE FITECH ULTIMATE LS TALL LS1/LS2/LS6 750HP W/FORCE FUEL (75208):
- Enhances engine performance and simplifies the tuning process.
- Ensures consistent fuel delivery with the Force Fuel system, preventing fuel starvation.
- Complete kit makes installation straightforward and efficient.
- Self-learning ECU reduces the complexity of tuning.
- Durable black anodized aluminum components provide a sleek appearance.
FEATURES:
- High-Volume Fuel Rails: Designed for optimal fuel flow.
- Advanced Oxygen Sensor: Bosch wideband-controlled for precise monitoring.
- Durable Bung: Stainless steel oxygen sensor bung included.
- Coil Compatibility: Works with both car and truck coil types.
- Secure Connections: AN fittings and fuel crossover ensure reliability.
- Touchscreen Controller: Programmable with data logging features for performance tracking.
- Mounting Options: Comes with a suction cup mounting bracket for the controller.
- Fuel Filter: Features a serviceable 10-micron fuel filter for clean fuel delivery.
