FiTech Ultimate LS Kit LS3/L92 500HP (70011)

Description

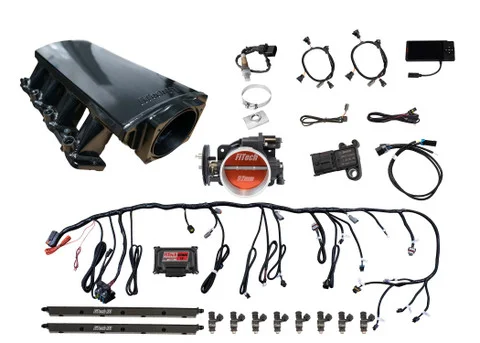

The FiTech Ultimate LS Kit LS3/L92 500HP (70011) is a complete solution for LS engine upgrades. Designed for LS3/L92 engines, this kit provides a self-tuning electronic fuel injection system, simplifying the process of enhancing your engine’s performance. It includes essential components like a 92mm throttle body, intake manifold, and a user-friendly touchscreen controller.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capabilities: Automatically adjusts fuel delivery for optimal performance.
• High Power Rating: Rated for up to 500 horsepower.
• 92mm Billet Throttle Body: For improved airflow and performance.
• High-Volume Fuel Rails: Ensures adequate fuel supply for performance needs.
• Aluminum Intake Manifold: Lightweight and durable design.
• User-Friendly Controller: 4.5-inch touchscreen for easy programming and data logging.
• Compatibility: Works with 24X and 58X crank and cam signals, providing a straightforward upgrade.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Throttle Body: 92mm billet
• Intake Manifold: Aluminum, black anodized
• Injectors: 36 lbs./hr.
• ECU: Self-tuning
• Controller: 4.5-inch touchscreen
• Compatibility: LS3/L92 engines, 24X/58X crank/cam signals
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Transmission Control: Not included

HOW TO USE:

• Preparation: Ensure your LS engine is ready for installation and disconnect the battery.
• Intake Installation: Install the provided intake manifold onto the engine.
• Throttle Body and Fuel Rails: Mount the 92mm throttle body and attach the high-volume fuel rails.
• Injector Installation: Install the 36 lbs./hr. injectors into the fuel rails.
• Wiring Harness Connection: Connect the wiring harness to the engine sensors and ECU.
• ECU and Controller Setup: Mount the ECU and connect the 4.5-inch touchscreen controller.
• Sensor Installation: Install the MAP, IAT, and TPS sensors.
• Oxygen Sensor: Install the oxygen sensor into the exhaust.
• Initial Setup: Use the touchscreen controller to input basic engine parameters.
• Start and Self-Tuning: Start the engine; the system will begin self-tuning.
• Fine Tuning: Monitor and adjust parameters using the controller as needed.

BENEFITS OF USING THE FITECH ULTIMATE LS KIT LS3/L92 500HP (70011):

• Simplifies LS engine upgrades with self-tuning capabilities, eliminating complex manual tuning.
• Improves performance and fuel efficiency.
• Includes all necessary components for a complete and compatible system.
• User-friendly touchscreen controller for easy adjustments and data logging.

FEATURES:

• Robust Construction: Black anodized aluminum for durability.
• High-Flow Throttle Body: Cable-operated for enhanced performance.
• Bosch Wideband Control: For accurate air-fuel ratio monitoring.
• Stainless Oxygen Sensor Bung: For easy installation.
• Coil Compatibility: Works with both car and truck coils.
• AN Fittings and Fuel Crossover: For efficient fuel delivery.
• Custom Cam Support: Designed to work with custom camshafts.
• Vacuum Requirement: Designed for applications making at least 6 inches of vacuum at idle.
• Sequential Control: Handles both spark and fuel control.
• Flexible Metering: Offers speed density (Map-N) or speed throttle (Alpha-N) options.
