FiTech Ultimate LS 750 HP EFI Short Intake w/ Master Kit (76303)

Description

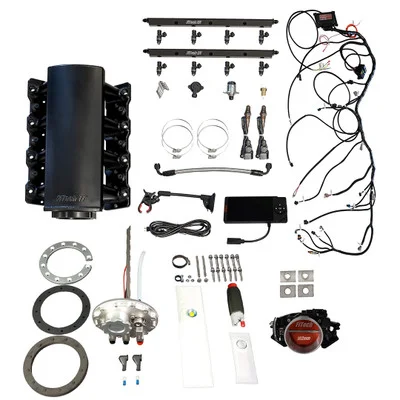

The FiTech Ultimate LS 750 HP EFI Short Intake w/ Master Kit (76303) provides a comprehensive solution for upgrading your LS engine. This kit is designed for cathedral port cylinder heads and supports up to 750 horsepower. It includes all necessary components for a complete electronic fuel injection conversion, simplifying the process and enhancing engine performance.

KEY FEATURES AND BENEFITS:

• Complete Multi-Port Fuel Injection System: Features a short cathedral intake manifold and a 102mm throttle body.
• High-Performance Injectors: Comes with 55 lb/hr fuel injectors for optimal fuel delivery.
• Reliable Fuel Delivery: In-tank fuel pump module ensures consistent fuel supply.
• User-Friendly Setup: Handheld touchscreen controller with self-learning EFI technology for optimized performance.
• Comprehensive Kit: Includes a user-tunable ECU, wiring harness, and all required sensors.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 750 HP
• Throttle Body: 102mm, GM LS2 4-bolt
• Injectors: 55 lbs/hr
• Fuel System: In-tank fuel pump module, returnless
• Metering Style: Speed density
• Intake Material: Aluminum, black anodized
• User Interface: 4.5-inch touchscreen
• ECU: Included
• Oxygen Sensor: Included
• MAP Sensor: Included
• IAT Sensor: Included
• TPS Sensor: Included

HOW TO USE:

• Preparation: Remove the existing intake manifold and fuel system from the LS engine.
• Installation of Intake: Install the FiTech short cathedral intake manifold onto the cylinder heads.
• Throttle Body Mounting: Attach the 102mm throttle body to the intake manifold.
• Injector Installation: Install the 55 lb/hr injectors into the fuel rails and connect the fuel lines.
• Fuel Pump Installation: Install the in-tank fuel pump module.
• Sensor Connections: Connect all necessary sensors, including the MAP, IAT, TPS, and oxygen sensors.
• Wiring Harness Connection: Connect the FiTech wiring harness to the sensors, injectors, and ECU.
• ECU Mounting: Secure the ECU in a suitable location.
• Touchscreen Setup: Connect the handheld touchscreen controller and mount it in a convenient location.
• Initial Setup: Follow the on-screen prompts to configure the ECU and initiate the self-learning process.
• Fine Tuning: Once the engine is running, use the touchscreen controller to monitor and adjust parameters as needed.

BENEFITS OF USING THE FITEC ULTIMATE LS 750 HP EFI SHORT INTAKE W/ MASTER KIT (76303):

• Simplified LS Engine Upgrade: A complete EFI system streamlines installation.
• Improved Performance: Enhances engine performance and drivability.
• Precise Fuel Delivery: Multi-port injection ensures optimal fuel distribution.
• Optimized Air/Fuel Ratios: Achieved through self-learning technology.
• User-Tunable Parameters: Allows for customized performance adjustments.
• Reliable Fuel Delivery: In-tank fuel pump module provides consistent operation.
• Easy Installation: Comprehensive kit includes everything needed for setup.

FEATURES:

• Fabricated 3mm Thick Aluminum Intake: Made from sheet metal and TIG welded for durability.
• Cast, Cable Activated Billet Aluminum 102mm Throttle Body: Optimized for high airflow.
• Handheld Controller: Color touchscreen with cable and windshield mount for easy access.
• Sequential Fuel and Spark Control: Provides individual cylinder trim for precise management.
• Compatible with 24x and 58x Cam Sensors: Ensures accurate engine timing.
• Knock Sensor Control: Connects to factory sensors for enhanced engine protection.
• 3-Bar MAP Sensor: Supports boosted applications up to 30 psi.
• Tach Output Driver: Works with most tachometers for accurate readings.
• Two Programmable Electric Fan Outputs: For effective cooling management.
• Custom Wiring Harness: Direct plug-in installation for convenience.
• Compatible with Alcohol, Gasoline, Methanol, and Flex Fuel: Versatile fuel options.
