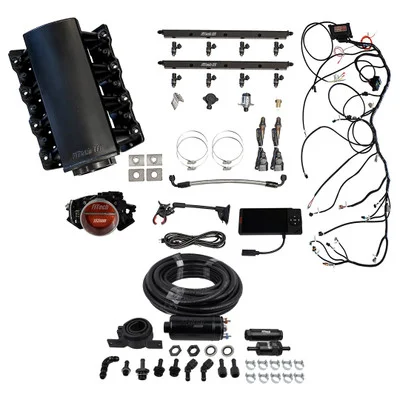

FiTech Ulti. LS1/LS2/LS6 750HP + In-line Fuel Pump Master Kit (71003)

Description

The FiTech Ulti. LS1/LS2/LS6 750HP + In-line Fuel Pump Master Kit (71003) is designed to modernize LS1, LS2, and LS6 engines, offering improved performance and drivability. This comprehensive kit provides a complete electronic fuel injection solution, supporting up to 750 horsepower. It includes a self-tuning ECU, high-flow intake manifold, and a 102mm billet throttle body. The system is compatible with boosted applications and offers sequential fuel and spark control.

KEY FEATURES AND BENEFITS:

• Supports up to 750 horsepower.
• Self-tuning ECU simplifies setup and adjustments.
• 102mm billet throttle body for increased airflow.
• Includes fuel pump and filtration system.
• Compatible with boosted applications (3-bar MAP sensor).
• Sequential fuel and spark control for precise tuning.
• Touch screen controller for monitoring and adjustments.
• Compatible with 24X and 58X crank/cam signals.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Throttle Body: 102mm Billet Aluminum
• Injectors: 55 lbs./hr.
• Fuel Pump: 255 LPH External
• MAP Sensor: 3-Bar
• ECU: Self-Tuning
• Compatibility: LS1/LS2/LS6 Engines
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Ensure the engine is prepared for EFI conversion, including necessary sensor ports and wiring.
• Installation: Install the intake manifold, throttle body, and fuel rails.
• Fuel System: Mount the fuel pump and filters, and connect the fuel lines.
• Wiring: Connect the wiring harness to the engine sensors and ECU.
• Sensor Installation: Install the MAP, IAT, and TPS sensors.
• ECU Connection: Connect the ECU and touch screen controller.
• Initial Setup: Power on the system and follow the touch screen prompts for initial setup.
• Self-Tuning: Start the engine and allow the ECU to self-tune.
• Fine-Tuning (Optional): Use the touch screen controller to make adjustments as needed.

BENEFITS OF USING FITECH ULTI. LS1/LS2/LS6 750HP + IN-LINE FUEL PUMP MASTER KIT (71003):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency.
• Simplified tuning with the self-learning ECU.
• Reliable fuel delivery with included fuel pump and filters.
• Modernized engine control system.
• Boost compatibility for high-performance builds.

FEATURES:

• Black anodized aluminum components for corrosion resistance.
• AN fittings and fuel crossover for secure fuel lines.
• Dual Bosch wideband oxygen sensor compatibility.
• Knock sensor control.
• Stainless steel oxygen sensor bung.
• Cable-operated throttle body.
• Data logging capabilities on the touch screen controller.
• Compatible with car and truck ignition coils.
