FiTech Rebel LS 750HP EFI Short Cath. 340LPH & Returnless Mod. (76390)

Description

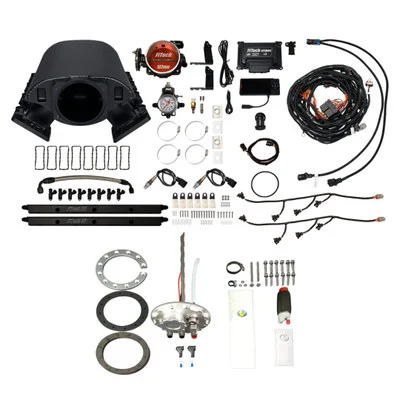

The FiTech Rebel LS 750HP EFI Short Cath. 340LPH & Returnless Mod. (76390) is a comprehensive solution designed to enhance the performance of LS engines. This kit provides a complete electronic fuel injection system, including a short cathedral intake manifold and a “Go Fuel” in-tank 340 LPH fuel pump returnless module. Engineered to support engines producing up to 750 horsepower, this system is ideal for those seeking improved fuel delivery and engine management. It is designed for those who require a complete kit, including the 2-inch fill master kit, for a full installation.

KEY FEATURES AND BENEFITS:

• Optimized for LS Engines: Ensures a precise fit and enhanced performance.
• Supports Up to 750 Horsepower: Ideal for high-performance engine builds.
• Complete EFI System: Simplifies installation and reduces the need for additional components.
• “Go Fuel” In-tank 340 LPH Fuel Pump: Provides reliable fuel delivery.
• Power Adder Compatibility: Supports boost and nitrous oxide for further performance enhancements.
• Multi-port Injection Style: Improves fuel atomization and distribution.
• Speed Density (Map-N) Metering Style: Ensures accurate fuel management.
• Compatible with Multiple Fuel Types: Versatile in fuel selection.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank 340 LPH)
• Intake Manifold Material: Aluminum
• Throttle Body Size: 102 mm
• Injector Size: 55 lbs/hr
• Compatibility: LS Engines
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Begin by removing the existing intake manifold and fuel system from the LS engine.
• Install the FiTech intake manifold, ensuring proper gasket placement and secure fastening.
• Mount the FiTech throttle body onto the intake manifold.
• Install the included 55 lbs/hr injectors into the intake manifold.
• Install the “Go Fuel” in-tank 340 LPH fuel pump module into the fuel tank.
• Connect the wiring harness to the ECU and all sensors (MAP, IAT, TPS, Oxygen).
• Install the included oxygen sensor into the exhaust system.
• Connect the fuel lines to the fuel pump and fuel pressure regulator.
• Use the calibration module to set the appropriate fuel and timing parameters.
• Verify all connections and test the system for proper operation.

BENEFITS OF USING THE FITECH REBEL LS 750HP EFI SHORT CATH. 340LPH & RETURNLESS MOD. (76390):

• Improved Engine Performance: Increases horsepower output significantly.
• Enhanced Fuel Efficiency: Optimizes fuel delivery for better mileage.
• Simplified Installation: Complete EFI system reduces installation complexity.
• Reliable Fuel Delivery: The in-tank fuel pump ensures consistent performance.
• Compatibility with Power Adders: Allows for further performance gains.
• Capability to Use Multiple Fuel Types: Offers flexibility in fuel selection.
• Precise Fuel Management: Ensures optimal engine performance.

FEATURES:

• Black anodized aluminum intake manifold for durability.
• Cast aluminum throttle body for efficient airflow.
• 102 mm single venturi throttle body with 1500 cfm airflow rate.
• 55 lbs/hr fuel injectors for precise fuel delivery.
• In-tank 340 LPH fuel pump for reliable operation.
• Speed density (Map-N) fuel metering for accurate fuel management.
• Complete wiring harness included for easy installation.
• Calibration module and sensors (MAP, IAT, TPS, Oxygen) included for comprehensive setup.
