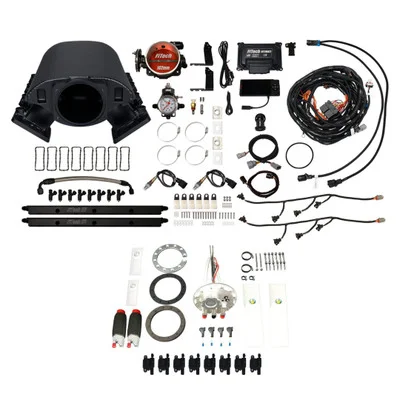

FiTech Rebel 1000HP EFI Cath. TC, Dual Pump, Reg & Coil w/LED (79893)

Description

The FiTech Rebel 1000HP EFI Cath. TC, Dual Pump, Reg & Coil w/LED (79893) is a complete electronic fuel injection solution designed for high-performance LS engines. This system provides precise fuel delivery and engine management, supporting up to 1000 horsepower. It includes a short cathedral intake manifold, transmission control, a robust fuel delivery system with dual in-tank pumps and regulator, and a high-performance ignition coil kit. This comprehensive kit optimizes engine performance and offers flexibility for various fuel types.

KEY FEATURES AND BENEFITS:

• Supports up to 1000 horsepower with precise fuel delivery through multi-port injection.
• Integrated transmission control for optimized shifting.
• Consistent fuel pressure and flow with a robust fuel system.
• Self-learning capabilities for enhanced performance.
• Compatible with power adders like boost and nitrous oxide.

SPECIFICATIONS:

• Maximum Horsepower: 1000 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank dual pump)
• Transmission Controller Included: Yes
• Metering Style: Speed density (MAP-N)
• Intake Manifold Material: Aluminum
• Throttle Body Diameter: 102 mm (1500 cfm)
• Injector Size: 80 lbs/hr
• Fuel Type Compatibility: Alcohol, Gasoline, Methanol, Flex
• Compatibility: LS engines with cathedral port heads.

HOW TO USE:

1. Preparation: Disconnect the vehicle’s battery and remove the existing intake manifold and fuel system.
2. Installation: Install the FiTech short cathedral intake manifold onto the engine.
3. Fuel System Setup: Mount the in-tank dual fuel pump module and connect the fuel lines to the regulator and fuel rails.
4. Injector and Throttle Body Installation: Install the 80 lbs/hr fuel injectors and the 102 mm throttle body.
5. Wiring and Sensor Connection: Connect the wiring harness to the ECU and install the necessary sensors (O2, MAP, IAT, TPS).
6. Ignition Coil Installation: Install the Go Spark LS3 style ignition coils.
7. ECU Configuration: Use the calibration module to configure the ECU settings and set up the transmission control.
8. Initial Start-up: Reconnect the battery and start the engine, allowing the system to self-learn and optimize fuel delivery.
9. Tuning: Fine-tune the system using the calibration module for optimal performance.

BENEFITS OF USING FITECH REBEL 1000HP EFI CATH. TC, DUAL PUMP, REG & COIL W/LED (79893):

• Enhanced engine performance and horsepower output.
• Precise fuel delivery for optimal combustion.
• Improved throttle response and drivability.
• Optimized transmission shifting for better performance.
• Flexibility to run various fuel types.
• Comprehensive system with all necessary components included.
• Reliable fuel delivery under high demand.

FEATURES:

• Black anodized aluminum intake manifold.
• High-flow 102 mm throttle body.
• 80 lbs/hr high-flow fuel injectors.
• Dual in-tank fuel pump module.
• Adjustable fuel pressure regulator with gauge.
• Go Spark LS3 style LED ignition coil pack.
• Speed density (MAP-N) fuel metering.
• Integrated transmission control.
• Calibration module included.
• Complete wiring harness and sensor kit.
