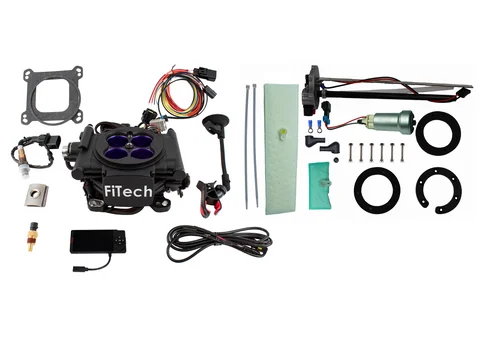

FiTech Mean Street 800 HP Matte Black EFI w/In Tank Master Kit (36108)

Description

The FiTech Mean Street 800 HP Matte Black EFI w/In Tank Master Kit (36108) provides a robust electronic fuel injection solution for high-performance engines. Designed for up to 800 horsepower, this throttle body injection system offers self-tuning capabilities with user-adjustable parameters, ensuring optimal fuel delivery for both street and track applications. The system includes an in-tank fuel pump module, simplifying installation and providing reliable fuel delivery.

KEY FEATURES AND BENEFITS:

• High-Performance Support: Engineered for applications supporting up to 800 horsepower.
• Integrated ECU and MAP Sensor: Streamlines installation and operation.
• 62 lb/hr Injectors: Provide precise fuel delivery for optimal performance.
• Go Fuel In-Tank Module: Includes a 340 LPH fuel pump, compatible with various fuel types.
• Self-Tuning Capability: Driven by a wide-band oxygen sensor for automatic adjustments.
• 4.5-Inch Handheld Display: Enables user fine-tuning and monitoring.
• Nitrous Oxide Compatibility: Versatile for various performance setups.
• 4-Barrel Square Bore Throttle Body Design: Suitable for direct replacement of carburetors.

SPECIFICATIONS:

• Maximum Horsepower: 800 HP
• Injection Style: Throttle body
• Timing Control: No
• Power Adder Compatibility: Nitrous Oxide
• ECU: Included
• Fuel Pump: Included (340 LPH in-tank)
• Metering Style: Speed density (MAP-N)
• Throttle Body Flange: 4-barrel square bore
• Injector Size: 62 lbs/hr
• Fuel Compatibility: Gasoline, E85, Methanol, Ethanol, Alcohol
• Display: 4.5-inch handheld
• Venturi Diameter: 43 mm
• Airflow Rate: 850 CFM
• Compatibility: Engines with 4-barrel square bore intake manifolds

HOW TO USE:

• Installation: Mount the throttle body to the 4-barrel intake manifold. Install the in-tank fuel pump module, ensuring proper connections.
• Wiring: Connect the wiring harness to the engine sensors and power supply, following the provided instructions.
• Sensor Installation: Install the wide-band oxygen sensor in the exhaust system and connect the MAP, IAT, and TPS sensors.
• Initial Setup: Power on the system and use the 4.5-inch display to input basic engine parameters.
• Self-Tuning: Start the engine and allow the system to self-tune based on the oxygen sensor readings.
• Fine-Tuning: Use the handheld display to make any necessary adjustments to fuel delivery and other parameters.
• Fuel System: Ensure the fuel system is properly filled and pressurized.

BENEFITS OF USING THE FITECH MEAN STREET 800 HP MATTE BLACK EFI W/IN TANK MASTER KIT (36108):

• Simplifies Engine Management: Eliminates the complexities of carburetor tuning for consistent fuel delivery.
• Reliable Fuel Delivery: The integrated in-tank fuel pump reduces installation time and complexity.
• Easy Monitoring and Adjustments: Handheld display allows for straightforward adjustments and performance tracking.
• Versatility: Nitrous oxide compatibility and multi-fuel support cater to different performance needs.
• Optimized Fuel Delivery: Ensures performance across various operating conditions.

FEATURES:

• Annular Swirl, Wet Flow Technology: Improves fuel atomization.
• Included “Go Fuel In-Tank Module”: Features a 340 LPH fuel pump.
• User-Adjustable Parameters: Accessible via the 4.5-inch handheld display.
• Multi-Fuel Support: Works with gasoline, E85, methanol, ethanol, and alcohol.
• Black Cast Aluminum Throttle Body: Sleek appearance and durable construction.
