Description

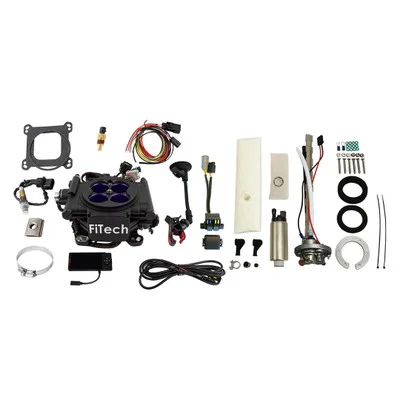

The FiTech Mean Street 800 HP Matte Black EFI w/ 340 LPH Pump (36608) offers a streamlined solution for upgrading to electronic fuel injection. Designed for high-performance engines, this kit provides a comprehensive package to replace traditional carburetors, enhancing engine efficiency and responsiveness.
KEY FEATURES AND BENEFITS:
- High Power Support: Supports up to 800 horsepower with throttle body injection for efficient fuel delivery.
- Go Fuel In-Tank Pump: Simplifies installation and ensures consistent fuel pressure.
- 850 CFM Airflow: Provides ample airflow for demanding applications.
- 62 lb/hr Injectors: Designed for high performance and reliability.
- Speed Density (MAP-N) Metering Style: Offers accurate fuel calculations for optimal performance.
- Nitrous Oxide Compatibility: Flexible for performance tuning with nitrous power adders.
SPECIFICATIONS:
- Maximum Horsepower: 800 HP
- Injection Style: Throttle Body
- Airflow Rate: 850 CFM
- Injector Size: 62 lbs/hr
- Fuel Pump: In-tank, 340 LPH
- Metering Style: Speed Density (MAP-N)
- Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
- Throttle Body: 4-barrel square bore, 43 mm venturi
- Power Adder: Nitrous Oxide
- ECU, Wiring Harness, Sensors: Included
- Timing Control: Not Compatible
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
- Fuel Pump Installation: Install the in-tank fuel pump according to the provided instructions.
- Throttle Body Mounting: Mount the FiTech throttle body onto the intake manifold using a 4-barrel square bore flange.
- Sensor Installation: Install the oxygen, MAP, IAT, and TPS sensors as directed.
- Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors, following the wiring diagram.
- ECU Mounting: Secure the ECU in a suitable location.
- Fuel Line Connection: Connect the fuel lines from the pump to the throttle body, ensuring proper sealing.
- Initial Calibration: Use the included calibration module to set initial parameters.
- Testing and Adjustment: Start the engine and monitor performance. Make adjustments as needed for optimal operation.
BENEFITS OF USING THE FITEC MEAN STREET 800 HP MATTE BLACK EFI W/ 340 LPH PUMP (36608):
- Improved Responsiveness: Enhances engine responsiveness and throttle control.
- Consistent Fuel Delivery: Maintains fuel delivery across varying engine loads.
- Simplified Installation: In-tank fuel pump facilitates easier installation.
- Enhanced Fuel Efficiency: More efficient than traditional carburetors.
- Reliable Metering: Provides accurate speed density metering.
- Wide Fuel Compatibility: Compatible with a variety of fuel types.
FEATURES:
- Matte Black Cast Aluminum Throttle Body: Durable and stylish design.
- Integrated Fuel Pressure Regulator: Ensures consistent fuel pressure.
- Comprehensive Sensor Package: Includes all necessary sensors for optimal operation.
- Robust Wiring Harness: Designed for secure connections.
- Universal Fit Design: Suitable for various engine applications.
- In-Tank 340 LPH Fuel Pump: Reliable fuel delivery system.
