Description

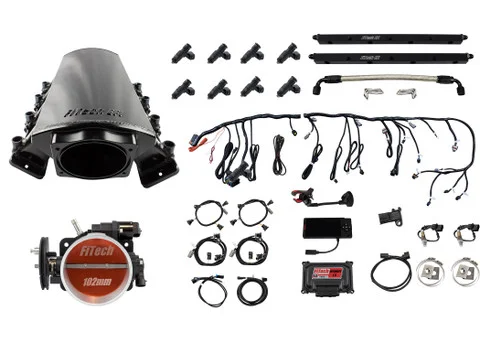

The FiTech LS7 1000HP EFI System w/ Square Port Kit (70036) provides a complete, self-tuning electronic fuel injection solution for LS7 engines. This kit is designed to simplify the process of installing and operating an EFI system, making it accessible to both DIY enthusiasts and professional tuners. It includes all necessary components for a comprehensive LS engine induction setup, eliminating the need for sourcing and matching individual parts.
KEY FEATURES AND BENEFITS:
- High Performance: Engineered to support up to 1000 horsepower.
- Optimal Fuel Delivery: Features a 102mm throttle body and 80 lbs/hr injectors.
- Self-Learning ECU: Facilitates easy setup and tuning with a touchscreen controller.
- Power Adder Compatibility: Supports boost and nitrous oxide applications.
- Crank and Cam Compatibility: Works with both 24X and 58X signals.
- Precise Tuning: Dual wideband oxygen sensors provide accurate feedback for optimal performance.
SPECIFICATIONS:
- Maximum Horsepower: 1000 HP
- Injection Style: Multi-port
- Throttle Body: 102mm
- Injectors: 80 lbs/hr
- ECU: Included, self-tuning
- MAP Sensor: 3-bar (up to 30 psi boost)
- Intake Material: Aluminum
- Fuel Rails: Billet with AN fittings
- Transmission Control: No
- Fuel Pump: Not included
- Fuel Pressure Regulator: Not included
- Compatibility: LS7 engines with square port heads; 24X and 58X crank and cam signals.
HOW TO USE:
- Installation: Install the intake manifold, throttle body, and fuel rails onto the LS7 engine.
- Injector and Sensor Setup: Connect the 80 lbs/hr injectors and install the included sensors (MAP, IAT, TPS, oxygen sensors).
- Wiring: Connect the provided wiring harness to the engine sensors and ECU.
- ECU Connection: Mount the ECU and connect the touchscreen controller.
- Initial Setup: Use the touchscreen to input basic engine parameters.
- Fuel System: Install a compatible fuel pump and connect it to the fuel rails.
- Startup: Start the engine and allow the self-learning ECU to begin tuning.
- Fine-Tuning: Monitor engine parameters via the touchscreen and make adjustments as needed.
BENEFITS OF USING THE FITECH LS7 1000HP EFI SYSTEM W/ SQUARE PORT KIT (70036):
- Simplified Installation: The complete kit eliminates the need to source individual components.
- Self-Tuning Capability: The ECU automatically adjusts fuel and spark settings for optimal performance.
- High-Performance Support: Designed to handle up to 1000 horsepower and power adders.
- Comprehensive Control: Manages fuel and spark, with individual cylinder trim and knock sensor control.
- User-Friendly Interface: Easy operation with the included touchscreen.
FEATURES:
- Fabricated Aluminum Intake Manifold: Features TIG welds for durability.
- Billet Fuel Rails: Equipped with AN fittings and fuel crossover.
- Dual Bosch Wideband Oxygen Sensors: For precise air-fuel ratio monitoring.
- 3-Bar MAP Sensor: Suitable for boost applications.
- Programmable Fan Control Outputs: For enhanced cooling management.
- Tach and Speedometer Output Drivers: For compatibility with aftermarket gauges.
- Knock Sensor Control: Integrated for improved engine safety.
- On-the-Fly Adjustments: Ability to change air-fuel ratio (AFR) and timing dynamically.
- Utilizes Factory Coil Pack Sub Harness: For easier integration.
