Description

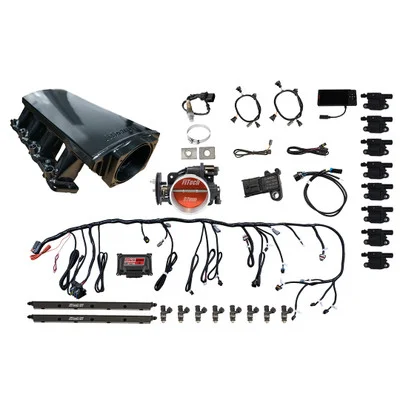

The FiTech LS3/L92 Kit 500HP w/ LED Coil Pack Set (79011) is engineered to modernize and enhance the performance of your LS engine. This multi-port electronic fuel injection system provides precise fuel delivery, improving efficiency and power. It includes an LS3 intake manifold, 92mm throttle body, and self-learning ECU for simplified tuning. Designed for engines up to 500 horsepower, this kit offers a comprehensive upgrade for LS applications.
KEY FEATURES AND BENEFITS:
- Enhanced Performance: Significant improvements through precise electronic fuel injection.
- Self-Learning ECU: Simplifies tuning by adapting to your engine’s specific needs.
- Optimized Airflow: LS3 intake manifold and 92mm throttle body enhance performance.
- Accurate Fuel Delivery: 36 lbs./hr injectors ensure precise fuel metering.
- High Power Capability: Designed for applications up to 500 horsepower.
- Wide Compatibility: Supports both 24X and 58X crank and cam signals.
- Modern Ignition Solution: Includes LED coil packs for efficient ignition.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Timing Control: Yes
- Power Adder Compatible: Yes (Boost/Nitrous oxide)
- ECU Included: Yes (Self-learning)
- Intake Manifold: LS3 style, aluminum
- Throttle Body: 92mm, GM LS2 4-bolt
- Injectors: 36 lbs./hr
- Fuel Type: Alcohol, Gasoline, Methanol, Flex
- Metering Style: Speed density (MAP-N)
- Display: 4.5 inch touchscreen
- Crank/Cam Compatibility: 24X and 58X
HOW TO USE:
- Preparation: Ensure your LS engine is properly installed and ready for EFI conversion.
- Intake Installation: Install the provided LS3 intake manifold and 92mm throttle body.
- Fuel Rail and Injector Installation: Mount the fuel rails and install the 36 lbs./hr injectors.
- Wiring Harness Connection: Connect the plug-and-play wiring harness to the engine sensors and ECU.
- Sensor Installation: Mount the oxygen sensor, MAP sensor, and IAT sensor.
- ECU Mounting: Secure the ECU and connect the touchscreen display.
- Coil Pack Installation: Install the LED coil packs.
- Initial Setup: Use the touchscreen display to input basic engine parameters.
- Self-Learning Process: Start the engine and allow the self-learning ECU to adjust fuel delivery.
- Fine-Tuning (Optional): Use the touchscreen display for further adjustments as needed.
BENEFITS OF USING THE FITECH LS3/L92 KIT 500HP W/ LED COIL PACK SET (79011):
- Improved engine performance and throttle response.
- Enhanced fuel efficiency through precise fuel delivery.
- Simplified tuning with the self-learning ECU.
- Modernized engine control and monitoring.
- Compatibility with various fuel types.
- Reliable operation with high-quality components.
FEATURES:
- Corrosion Resistance: Black anodized aluminum components for durability.
- High-Flow Throttle Body: Cable-operated design for optimal performance.
- Oxygen Sensor: Bosch wideband oxygen sensor included for accurate readings.
- Stainless Steel Bung: For oxygen sensor installation.
- Coil Compatibility: Works with both car and truck coil types.
- Flexible Fuel System: AN fittings and fuel crossover provided.
- Custom Camshaft Support: Designed for use with custom camshafts.
- Data Logging: Programmable touchscreen hand-held controller included.
- Fan Control Outputs: Included for additional cooling options.
- Tach and Speedometer Outputs: Output drivers for easy integration.
