Description

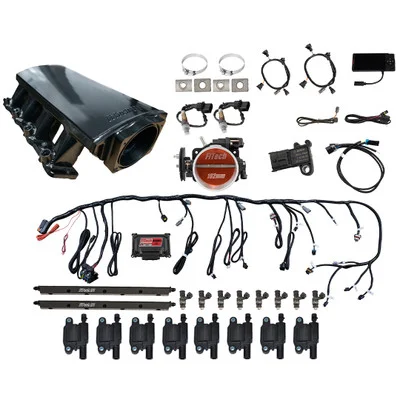

The FiTech LS3/L92 750HP EFI Kit w/Coil Pack Set (78013) offers a complete fuel injection solution for LS3/L92 engines. This kit provides a straightforward method to upgrade your fuel system, with features designed to improve engine performance and simplify tuning. This system is rated for up to 750 horsepower and uses speed density (MAP-N) metering for accurate fuel delivery. This is an engine management only system and does not provide transmission control.
KEY FEATURES AND BENEFITS:
- Engine Fit: Designed specifically for LS3/L92 engines, ensuring optimal performance.
- Power Rating: Rated for 750 horsepower, making it suitable for high-performance applications.
- Self-Tuning ECU: Simplifies the tuning process for enhanced performance.
- Multi-Port Fuel Injection: Provides precise fuel delivery to each cylinder.
- Complete Package: Includes intake manifold, throttle body, fuel rails, and injectors.
- Coil Packs Included: Comes with coil packs for the ignition system.
- Power Adder Compatibility: Supports Boost and Nitrous oxide power adders.
- Touchscreen Display: Features a 4.5-inch touchscreen for easy monitoring and adjustments.
SPECIFICATIONS:
- Maximum horsepower: 750 HP
- Injection style: Multi-port
- Metering style: Speed density (MAP-N)
- Intake material: Aluminum
- Throttle body size: 102mm
- Injector size: 55 lbs./hr.
- Transmission control: No
- Fuel pump: Not included
- ECU: Included
- Coil packs: Included
HOW TO USE:
- Preparation: Ensure your LS3/L92 engine is ready for EFI installation.
- Intake Installation: Install the provided intake manifold onto the engine.
- Throttle Body and Fuel Rail Installation: Mount the throttle body and fuel rails onto the intake.
- Injector Installation: Install the included fuel injectors.
- Wiring Harness Connection: Connect the wiring harness to the engine sensors and ECU.
- ECU Setup: Mount the ECU and connect the touchscreen controller.
- Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
- Coil Pack Installation: Install the included coil packs.
- Initial Setup: Follow the touchscreen controller’s instructions for initial setup and calibration.
- Fine-Tuning: Allow the self-tuning ECU to optimize performance; fine-tuning may be necessary.
BENEFITS OF USING FITECH LS3/L92 750HP EFI KIT W/COIL PACK SET (78013):
- Improved engine performance and throttle response.
- Simplified fuel system upgrade process.
- Accurate fuel delivery for optimal combustion.
- Reduced tuning time with self-tuning capabilities.
- Complete kit provides all necessary components.
- Allows use of power adders like boost and nitrous.
FEATURES:
- Durable Construction: Black anodized aluminum components for corrosion resistance.
- Throttle Body: 102mm billet design for high airflow.
- Fuel Rails: High-volume billet fuel rails included.
- Injectors: 55 lbs./hr. for efficient fuel delivery.
- MAP Sensor: 3-bar for accurate pressure readings.
- Oxygen Sensors: Dual Bosch wideband sensors for precise air-fuel ratio monitoring.
- Touchscreen Controller: Programmable unit with data logging capabilities.
- Signal Compatibility: Works with 24x and 58x crank and cam signals.
- Knock Sensor Control: Included for engine protection.
- Coil Compatibility: Compatible with car and truck coil packs.
