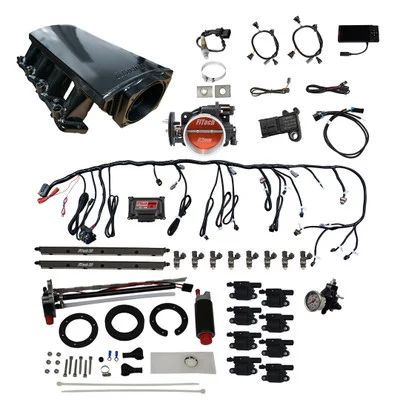

FiTech LS Kit 70011 w/50015 Module, Regulator & Coil Pack (79611)

Description

The FiTech LS Kit 70011 w/50015 Module, Regulator & Coil Pack (79611) provides a comprehensive electronic fuel injection solution for LS engines. This kit is designed to improve performance, efficiency, and drivability by replacing the factory fuel system with a modern, tunable EFI setup. The system supports up to 500 horsepower and includes all essential components for a seamless installation.

KEY FEATURES AND BENEFITS:

• Complete EFI Conversion: Offers a complete solution for LS engines, including a 92mm throttle body, high-volume fuel rails, and a performance intake manifold.
• Self-Learning ECU: The self-learning ECU and touch screen interface allow for easy tuning and monitoring.
• Convenient Fuel Delivery: The included Go Fuel in-tank module simplifies fuel system installation.
• Flexible Performance: Compatible with timing control and power adders for various performance applications.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Throttle Body: 92mm, 1250 CFM
• Injectors: 36 lbs./hr.
• Fuel Pump: 340 LPH In-tank
• ECU: Included, self-tuning
• Display: 4.5-inch touch screen
• Intake Manifold: Aluminum, black anodized
• Fuel Type: Alcohol, Gasoline, Methanol, Flex Fuel
• Metering Style: Speed density (MAP-N) or speed throttle (Alpha-N)

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing fuel system and intake manifold.
• Installation of In-Tank Module: Install the Go Fuel in-tank module in the fuel tank, ensuring proper fuel line routing.
• Intake Manifold and Throttle Body Installation: Mount the new intake manifold and 92mm throttle body onto the LS engine.
• Fuel Rail and Injector Installation: Install the high-volume fuel rails and 36 lbs./hr injectors.
• Sensor Installation: Connect all necessary sensors, including MAP, IAT, TPS, and oxygen sensors.
• Wiring Harness Connection: Connect the plug-and-play wiring harness to the ECU and all components.
• ECU Setup: Mount the ECU and connect the touch screen display.
• Initial Calibration: Use the touch screen to input engine specifications and perform an initial calibration.
• Fuel Pressure Regulation: Install the fuel pressure regulator and set to the required pressure.
• Testing and Tuning: Start the engine and use the touch screen to monitor and adjust system parameters as needed.

BENEFITS OF USING THE FITECH LS KIT 70011 W/50015 MODULE, REGULATOR & COIL PACK (79611):

• Improved engine performance and throttle response for a more engaging driving experience.
• Enhanced fuel efficiency through precise fuel delivery, helping to save on fuel costs.
• Simplified installation with the included Go Fuel in-tank module for ease of use.
• User-friendly tuning with the touch screen interface for real-time adjustments.
• Compatibility with various LS engine configurations for versatility.
• Flexibility to use multiple fuel types, accommodating various applications.
• Complete kit eliminates the need for separate purchases, saving time and money.

FEATURES:

• Durable Construction: Black anodized aluminum intake manifold for corrosion resistance.
• High-Flow Throttle Body: 92mm, cable-operated design for increased airflow.
• Accurate Monitoring: Bosch wideband-controlled oxygen sensor for precise fuel management.
• Durable Installation: Stainless steel oxygen sensor bung included for reliability.
• Compatible Components: Works with car and truck coil packs for flexibility in applications.
• Secure Connections: AN fittings and fuel crossover for reliable fuel line connections.
• Custom Cam Compatibility: Designed to work with custom camshafts for tailored performance.
• Vacuum Requirements: Suitable for engines with at least 6 inches of vacuum at idle.
• Crank and Cam Compatibility: Supports 24X and 58X signals for versatile setups.
• Programmable Touch Screen Controller: Hand-held controller with data logging capabilities for performance analysis.
• LED Coil Packs: Included for improved ignition reliability and performance.
