FiTech LS EFI Master Kit 70011 500HP w/50015 In-Tank Module (76211)

Description

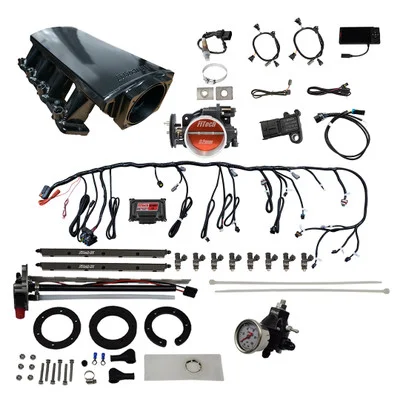

The FiTech LS EFI Master Kit 70011 500HP w/50015 In-Tank Module (76211) provides a complete electronic fuel injection solution for LS engines. This kit offers improved performance and fuel efficiency, simplifying the transition from carbureted setups. It includes all necessary components for installation, from the in-tank fuel module to the ECU and sensors.

KEY FEATURES AND BENEFITS:

• Maximum Power Output: Supports up to 500 horsepower, suitable for various LS engine builds.
• Go Fuel In-Tank Module: Simplifies fuel delivery, eliminating external fuel pump requirements.
• High-Performance Components: 92mm throttle body and high-volume fuel rails ensure optimal airflow and fuel distribution.
• Self-Learning ECU: Equipped with a touchscreen controller for easy tuning and adjustments.
• Compatibility: Supports boost and nitrous for flexible performance enhancements.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Metering Style: Speed density (Map-N)
• Throttle Body: 92mm, 1250 cfm
• Injectors: 36 lbs./hr
• Fuel Pump: 340 lph in-tank
• ECU: Self-learning with touchscreen
• Intake Manifold: Aluminum, black anodized
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
• Transmission Control: Optional for GM 4L60, 4L65, 4L70, 4L80

HOW TO USE:

• Fuel System Installation: Install the Go Fuel in-tank module in your fuel tank, connecting the supply and return lines.
• Intake and Throttle Body: Mount the intake manifold and 92mm throttle body onto the LS engine.
• Injector and Fuel Rail Setup: Install the 36 lbs./hr. injectors and high-volume fuel rails.
• Wiring Harness Connection: Connect the plug-and-play wiring harness to the engine and sensors.
• Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
• ECU Setup: Connect the ECU and touchscreen controller, and follow the on-screen instructions for initial setup.
• Initial Tuning: Start the engine and allow the self-learning ECU to adjust fuel and timing parameters.
• Fine Tuning: Use the touchscreen controller to make necessary adjustments for optimal performance.

BENEFITS OF USING THE FITECH LS EFI MASTER KIT 70011 500HP W/50015 IN-TANK MODULE (76211):

• Improved fuel efficiency compared to carbureted systems.
• Enhanced engine performance with precise fuel and timing control.
• Simplified fuel system installation with the in-tank module.
• Easy tuning and adjustments with the self-learning ECU and touchscreen controller.
• Compatibility with power adders for increased performance.

FEATURES:

• Durable Construction: Black anodized aluminum components for longevity.
• Accurate Monitoring: Bosch wideband control for precise fuel management.
• Durable Sensor Bung: Stainless steel oxygen sensor bung included.
• Secure Connections: Includes AN fittings and fuel crossover.
• Custom Camshaft Support: Designed to work with custom camshafts.
• Vacuum Requirements: Suitable for applications with at least 6 inches of vacuum at idle.
• Crank and Cam Compatibility: Supports 24X and 58X signals.
• User-Friendly Controller: Programmable touchscreen hand-held controller with data logging features.
• Convenient Mounting: Suction cup mounting bracket for easy access.
