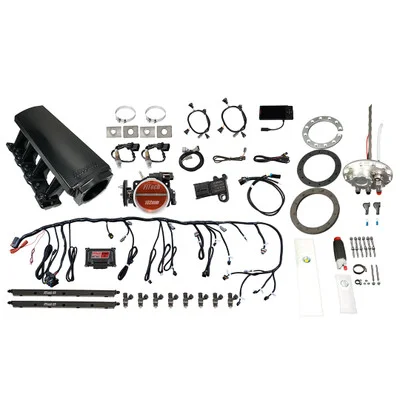

FiTech LS 750 HP EFI Long Intake w/ Trans Control & Master Kit (76309)

Description

The FiTech LS 750 HP EFI Long Intake w/ Trans Control & Master Kit (76309) provides a comprehensive solution for modernizing LS engines. This kit delivers improved performance and drivability through electronic fuel injection, offering precise control over fuel and spark. It includes everything needed for a complete installation, from the intake manifold to the electronic control unit.

KEY FEATURES AND BENEFITS:

• Complete EFI Solution: Designed specifically for LS engines, offering a full electronic fuel injection system.
• Long Runner Cathedral Intake Manifold: Enhances airflow and performance for optimal power delivery.
• High Power Rating: Supports up to 750 horsepower for high-performance applications.
• Improved Fuel Efficiency: Enhances engine responsiveness and fuel economy.
• Precise Tuning Capabilities: Allows for detailed adjustments to fuel and spark settings.
• Simplified Transmission Control: Integrates easily with automatic transmissions.
• Complete Fuel Solution: Includes an in-tank fuel pump module for reliable fuel delivery.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank)
• Transmission Controller Included: Yes
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum (Black Anodized)
• Throttle Body: 102mm (GM LS2 4-bolt)
• Injector Size: 55 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Installation: Remove the existing intake and fuel system. Install the FiTech intake manifold and throttle body.
• Fuel System: Install the in-tank fuel pump module according to the provided instructions. Connect the fuel lines and pressure regulator.
• Wiring: Connect the wiring harness to the engine sensors and ECU. Ensure proper grounding.
• Sensor Installation: Install the MAP, IAT, and TPS sensors. Connect the oxygen sensor to the exhaust system.
• ECU Setup: Connect the handheld controller to the ECU. Follow the on-screen instructions for initial setup and calibration.
• Initial Start: Start the engine and allow the self-learning system to adjust the air/fuel ratio.
• Transmission Setup: If applicable, configure the transmission control settings using the handheld controller.
• Fine Tuning: Make necessary adjustments to the calibration for optimal performance.

BENEFITS OF USING THE FITEC LS 750 HP EFI LONG INTAKE W/ TRANS CONTROL & MASTER KIT (76309):

• Improved Engine Performance: Delivers better throttle response and acceleration.
• Enhanced Fuel Efficiency: Optimizes fuel usage for better economy.
• Precise Control: Offers detailed control over fuel and spark timing.
• Simplified Installation: Complete kit for easy setup and installation.
• Compatibility with Power Adders: Supports various performance enhancements.
• Wide Fuel Type Compatibility: Works with multiple fuel types for versatility.

FEATURES:

• Fabricated Aluminum Long Runner Cathedral Intake Manifold: Designed for improved airflow and performance.
• 102mm Billet Aluminum Throttle Body: Supports high air intake requirements.
• Handheld Color Touchscreen Controller: For easy adjustments and monitoring.
• Self-Learning Capability: Automatically adjusts for optimal air/fuel ratio.
• Sequential Fuel and Spark Control: Provides precise engine management.
• In-Tank 340 LPH Fuel Pump: Returnless module for efficient fuel delivery.
• Comprehensive Wiring Harness and Sensor Package: Complete installation support.
• Supports Various Fuel Types: Including flex fuel compatibility.
• Transmission Control Functions: Enhances drivability and performance.
• Black Anodized Intake Finish: Durable and aesthetically pleasing.
