Description

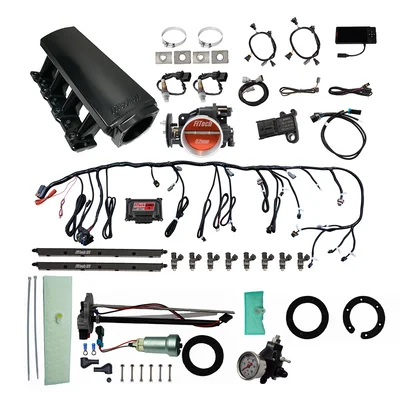

The FiTech LS 500HP EFI System w/ Intake, Trans Control & Regulator (76107) simplifies LS engine conversions. This comprehensive kit includes an intake manifold, 92mm throttle body, in-tank fuel pump, and electronic transmission control. Designed for cathedral port LS engines, it supports up to 500 horsepower. The self-tuning ECU and included components make installation and tuning straightforward, offering a complete solution for performance LS builds.
KEY FEATURES AND BENEFITS:
- Complete LS EFI System: Simplifies engine swaps with all necessary components included.
- Transmission Control: Manages GM 4L60, 4L65, 4L80, and 4L85 transmissions for precise shifting.
- Self-Tuning ECU: Adapts to engine conditions for optimal performance without complex tuning.
- High-Flow Components: Features a 92mm throttle body and high-volume intake manifold for enhanced airflow.
- Comprehensive Fuel System: Includes in-tank fuel pump and regulator for reliable fuel delivery.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Throttle Body: 92mm
- Injector Size: 36 lbs./hr.
- Fuel Pump Flow: 440 LPH
- Transmission Control: Compatible with GM 4L60, 4L65, 4L80, and 4L85
- Intake Manifold Height: 9 inches
- Intake Manifold Port Type: Cathedral Port
HOW TO USE:
- Intake Installation: Install the intake manifold and throttle body onto the LS engine.
- Fuel Pump Installation: Mount the in-tank fuel pump module within the fuel tank.
- Wiring Connection: Connect the wiring harness to the engine sensors and transmission.
- Oxygen Sensor Installation: Install the oxygen sensor in the exhaust system.
- Controller Connection: Connect the handheld controller to the ECU.
- Engine Startup: Start the engine and allow the self-tuning ECU to calibrate.
- Transmission Adjustment: Adjust transmission shift points and firmness via the handheld controller.
- Fuel Pressure Verification: Verify fuel pressure with the included fuel regulator.
BENEFITS OF USING THE FITECH LS 500HP EFI SYSTEM W/ INTAKE, TRANS CONTROL & REGULATOR (76107):
- Simplified Conversions: Eases the process of upgrading to EFI for LS engines.
- Improved Performance: Enhances overall engine performance and efficiency.
- Precise Transmission Control: Offers enhanced control over shifting for better driving experience.
- Easy Self-Tuning: Simplifies the tuning process with a self-learning ECU.
- Integrated Fuel System: Provides a complete and reliable fuel delivery system.
FEATURES:
- Durable Construction: Black anodized aluminum for strength and aesthetics.
- Accurate Monitoring: Bosch wideband oxygen sensor for precise air-fuel ratio readings.
- Signal Compatibility: Works with 24x and 58x crank/cam signals.
- User-Friendly Controller: Touch screen handheld controller for easy adjustments.
- Fuel Pump Module: In-tank fuel pump module with -6 AN fittings for efficient connections.
- Speed Density System: Uses a speed density system for accurate fuel metering.
- Fuel Type Versatility: Designed for use with multiple fuel types for flexibility.
