FiTech LS 500HP EFI Short LS3 w/ 600 HP Module, TC & Regulator (76412)

Description

The FiTech LS 500HP EFI Short LS3 w/ 600 HP Module, TC & Regulator (76412) provides a comprehensive solution for LS engine swaps. This kit simplifies the transition from carbureted to electronic fuel injection, offering improved performance and drivability. Designed for engines producing up to 500 horsepower, this system includes all necessary components for a complete installation.

KEY FEATURES AND BENEFITS:

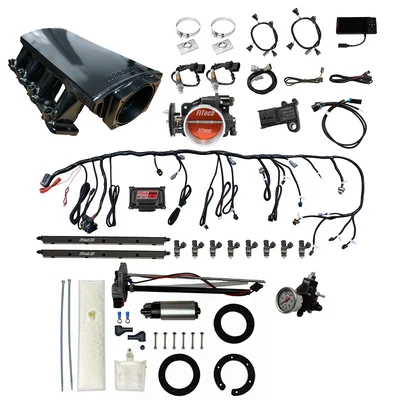

• Complete EFI Solution: Includes intake manifold, throttle body, injectors, ECU, wiring harness, and sensors.
• 500 HP Support: Designed for engines producing up to 500 horsepower.
• Self-Learning Technology: Facilitates easy tuning with automatic adjustments.
• Flexible Fuel Delivery Options: Supports in-tank, inline, and Force Fuel systems.
• Transmission Control: Included for 4L60/65/80/85 GM transmissions, allowing for shift point and firmness adjustments.
• Wide Fuel Compatibility: Works with multiple fuel types and supports boosted applications.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Intake Material: Aluminum
• Throttle Body Size: 92mm
• Injector Size: 36 lbs/hr
• ECU: Included
• Fuel Pump: Included (multiple options)
• Transmission Control: Included (select models)
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Installation: Install the intake manifold and throttle body onto the LS engine.
• Fuel System Setup: Choose and install the desired fuel pump (in-tank, inline, or Force Fuel). Connect fuel lines and regulator.
• Wiring: Connect the wiring harness to the ECU and engine sensors (MAP, IAT, TPS, O2).
• Injector Installation: Install the injectors into the fuel rails and connect the injector wiring.
• ECU Setup: Connect the handheld controller and follow the on-screen instructions for initial setup.
• Self-Learning: Start the engine and allow the system to self-learn and adjust fuel parameters.
• Transmission Control (if applicable): Use the handheld controller to adjust shift points and firmness.

BENEFITS OF USING THE FITEC LS 500HP EFI SHORT LS3 W/ 600 HP MODULE, TC & REGULATOR (76412):

• Improved Engine Performance: Enhances throttle response and overall performance.
• Enhanced Fuel Efficiency: Achieved through precise fuel delivery.
• Simplified Installation: Streamlines the LS engine swap process.
• User-Friendly Tuning: Self-tuning capabilities reduce setup time.
• Optimized Shifting: Transmission control for better performance.
• Boosted Application Support: Ready for power adders.

FEATURES:

• Durable Intake Manifold: Fabricated 3mm thick aluminum sheet metal.
• High Airflow Throttle Body: Cast, cable-activated billet aluminum 92mm throttle body.
• Handheld Controller: Features a color touch screen and cable for convenience.
• LS ECU: Equipped with sequential fuel and spark control.
• High Volume Injectors: 36 lb/hr injectors with high volume billet fuel rails.
• MAP Sensor: 3-Bar MAP sensor for boosted applications.
• Fan Outputs: Two programmable electric fan outputs included.
• WBO2 Sensor: For accurate air/fuel ratio monitoring.
• Knock Sensor Control: Connects to factory sensors for added safety.
• Tach Output Driver: Works with most tachometers.
