FiTech LS 500 HP EFI Short w/ 600HP Module, TC & Regulator (76402)

Description

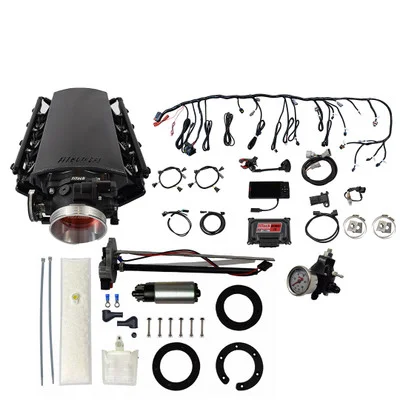

The FiTech LS 500 HP EFI Short w/ 600HP Module, TC & Regulator (76402) is a comprehensive solution designed to simplify and enhance LS engine swaps. This kit provides all the necessary components for a complete electronic fuel injection conversion, including an intake manifold, throttle body, fuel injectors, ECU, wiring harness, and an in-tank fuel pump module. The system is engineered for engines producing up to 500 horsepower, offering improved performance and drivability.

KEY FEATURES AND BENEFITS:

• Boosted Application Support: Flexibility for performance enthusiasts with the ability to handle boosted setups.
• Speed Density Metering: Utilizes MAP-N metering style for precise fuel calculations.
• Self-Learning ECU: Adapts to optimize air/fuel ratios, simplifying the tuning process.
• High Airflow: 92mm throttle body ensures adequate airflow for performance.
• Reliable Fuel Delivery: In-tank fuel pump module provides consistent fuel supply.
• User-Friendly Interface: 4.5-inch color touchscreen display for easy monitoring and adjustments.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Transmission Control: Yes
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum
• Throttle Body: 92mm, GM LS2 4-bolt
• Injectors: 36 lbs/hr
• Fuel Pump: In-tank 600hp module
• ECU: Included, user-tunable
• Fuel Type: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

• Preparation: Ensure the LS engine is installed and ready for EFI conversion.
• Intake Installation: Mount the FiTech intake manifold onto the engine.
• Throttle Body and Injector Installation: Attach the 92mm throttle body and install the provided 36 lbs/hr injectors.
• Fuel System Installation: Install the in-tank fuel pump module and connect the fuel lines.
• Wiring Harness Connection: Connect the FiTech wiring harness to the engine sensors and ECU.
• ECU Mounting: Mount the ECU in a suitable location.
• Sensor Connections: Connect the MAP, IAT, TPS, and oxygen sensors.
• Transmission Control (if applicable): Connect the transmission control wiring to the appropriate transmission connectors.
• Display Connection: Connect the 4.5-inch touchscreen display.
• Initial Setup: Power on the system and follow the on-screen instructions for initial setup and calibration.
• Tuning: Allow the self-learning ECU to adapt, and make fine-tuning adjustments as needed using the touchscreen display.

BENEFITS OF USING THE FITEC LS 500 HP EFI SHORT W/ 600HP MODULE, TC & REGULATOR (76402):

• Simplified Engine Swaps: Complete EFI solution for easier installations.
• Improved Performance: Enhances engine performance and drivability.
• Precise Control: Offers fuel and spark control for optimal tuning.
• Transmission Control: Provides control for compatible GM transmissions.
• Boost Compatibility: Ready for boosted applications to increase power.

FEATURES:

• Durable Intake Manifold: Fabricated 3mm thick aluminum sheet metal.
• Optimized Throttle Body: Cast, cable activated billet aluminum 92mm throttle body.
• Sequential Control: Sequential fuel and spark control for enhanced efficiency.
• Knock Sensor Control: Connects to factory sensors for safety.
• MAP Sensor: 3-Bar MAP sensor for boosted applications.
• Programmable Fan Outputs: Two outputs for controlling electric fans.
• WBO2 Sensor: Included for accurate air-fuel ratio monitoring.
• Tach Output Driver: Works with most tachometers.
• High Volume Fuel Rails: Ensures adequate fuel supply to injectors.
• Sensor Compatibility: Ability to connect to 24x and 58x cam sensors.
