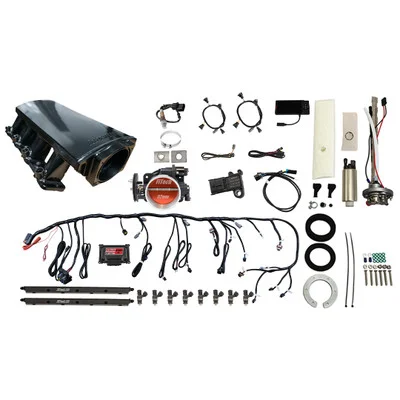

FiTech LS 500 HP EFI LS3 Intake w/ Regulated Pump Master Kit (76611)

Description

The FiTech LS 500 HP EFI LS3 Intake w/ Regulated Pump Master Kit (76611) provides a comprehensive solution for LS engine swaps. This kit simplifies fuel delivery and engine management, offering self-tuning capabilities and a complete set of components for optimal performance.

KEY FEATURES AND BENEFITS:

• This master kit is designed for LS engines up to 500 horsepower, featuring a multi-port fuel injection system.
• The kit includes a short LS3 port intake manifold, a 92mm throttle body, and 36 lb/hr injectors.
• The self-tuning ECU and 4.5-inch display allow for easy setup and adjustments.
• The included 340 lph in-tank fuel pump module ensures consistent fuel delivery.
• The system uses speed density metering, making it suitable for boosted applications.
• This kit streamlines LS swaps by providing all necessary components for a complete fuel injection system.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Fuel Injection Style: Multi-port
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum, Black Anodized
• Throttle Body: 92mm, Cast Aluminum, Black
• Injectors: 36 lbs./hr
• Fuel Pump: 340 lph In-tank
• ECU Included: Yes
• Display: 4.5 inch Touchscreen
• Compatible Fuel Types: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Install the Intake Manifold: Mount the short LS3 port intake manifold onto the engine.
• Mount the Throttle Body: Attach the 92mm throttle body to the intake manifold using the GM LS2 4-bolt flange.
• Install Fuel Injectors and Rails: Mount the 36 lb/hr injectors and billet fuel rails.
• Install Fuel Pump: Place the 340 lph in-tank fuel pump module into the fuel tank.
• Connect Sensors: Attach the MAP, IAT, TPS, and oxygen sensors to their respective locations.
• Wire the ECU: Connect the wiring harness to the ECU and all sensors, following the provided instructions.
• Mount the Display: Install the 4.5-inch touchscreen display in a convenient location.
• Initial Setup: Power on the system and follow the on-screen prompts for initial setup and self-tuning.
• Fine-Tuning: Use the display to monitor and adjust settings as needed.

BENEFITS OF USING THE FITECH LS 500 HP EFI LS3 INTAKE W/ REGULATED PUMP MASTER KIT (76611):

• Simplified LS engine swaps with a complete fuel injection kit.
• Self-tuning capabilities minimize setup time and adjustments.
• Consistent fuel delivery with the included 340 lph in-tank pump.
• Compatibility with boosted applications through the 3-Bar MAP sensor.
• Comprehensive monitoring and adjustments with the 4.5-inch display.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake.
• TIG welded construction.
• Black anodized intake finish.
• Cast, cable activated billet aluminum 92mm throttle body.
• High volume billet fuel rails.
• Sequential fuel and spark control.
• Individual cylinder trim.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• Two programmable electric fan outputs.
• Custom wiring harness for direct plug-in installation.
