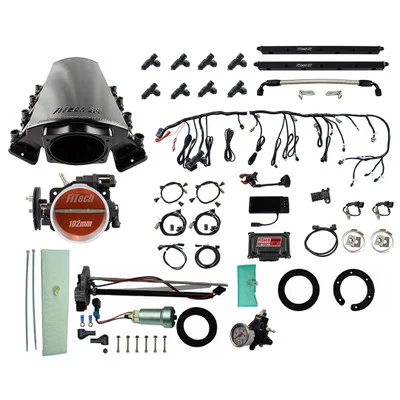

FiTech LS 1000HP EFI w/LS7 Intake, Pump & Regulator (76136)

Description

The FiTech LS 1000HP EFI w/LS7 Intake, Pump & Regulator (76136) is a comprehensive fuel injection solution designed for high-performance LS engines. This kit supports up to 1,000 horsepower, making it ideal for forced induction applications. It features multi-port injection, self-tuning capabilities, and a complete in-tank fuel system.

KEY FEATURES AND BENEFITS:

• Precise Fuel Delivery: Multi-port injection system with 80 lbs/hr injectors ensures optimal fuel management.
• Self-Learning ECM: Simplifies tuning by automatically adjusting parameters for optimal performance.
• User-Tunable Options: Allows for fine adjustments to meet specific engine requirements.
• In-Tank Fuel Pump: 440 LPH pump provides adequate fuel supply for high-horsepower builds.
• Easy Monitoring: 4.5-inch display allows for straightforward system monitoring and adjustments.
• Compatibility: Designed for LS engines using LS7 short intake manifolds.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Multi-port Throttle Body
• Maximum Horsepower: 1,000 (gasoline)
• Timing Control: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System: In-tank fuel pump module, return
• Fuel Pump Flow: 440 LPH
• Injectors: 80 lbs/hr
• Display: 4.5 inch
• Metering Style: Speed density
• Throttle Body: GM LS2 4-bolt
• Compatibility: GM LS based engines using LS7 short intake manifolds

HOW TO USE:

• Installation: Begin by installing the LS7 short intake manifold onto the engine.
• Fuel System: Install the in-tank fuel pump module within your gas tank and run all necessary fuel lines.
• Sensor Installation: Mount the included MAP, IAT, TPS, and oxygen sensors to their respective locations.
• Wiring Harness: Connect the wiring harness to all sensors, injectors, and the ECM.
• ECM Mounting: Secure the ECM in a safe, accessible location.
• Display Connection: Connect the 4.5-inch display to the ECM.
• Initial Setup: Power on the system and input basic engine parameters into the ECM.
• Self-Tuning: Start the engine and allow the self-learning feature to optimize fuel delivery.
• Fine-Tuning (Optional): Use the display to monitor and adjust fuel and timing settings as needed.

BENEFITS OF USING THE FITECH LS 1000HP EFI W/LS7 INTAKE, PUMP & REGULATOR (76136):

• Improved Engine Performance: Enhances horsepower and efficiency.
• Precise Fuel Delivery: Optimizes power output for high-performance applications.
• Simplified Tuning: Self-learning capabilities reduce setup complexity.
• Reliable Fuel Supply: High-flow in-tank pump ensures consistent performance.
• Easy System Monitoring: User-friendly display for real-time adjustments.
• Designed for Boosted Applications: Ideal for forced induction setups.

FEATURES:

• High Volume 80 Pound Fuel Injectors: Supports high-horsepower needs.
• Speed Density Based Calculations: Ensures accurate fuel management.
• Comprehensive Wiring Harness: Simplifies installation with all necessary connections.
• Included Fuel Pressure Regulator: Maintains optimal fuel pressure.
• Black Finish: Anodized intake manifold and throttle body for durability.
• Multi-Port Fuel Rails: Provides efficient fuel distribution.
• Complete Sensor Suite: All sensors included for full functionality.
