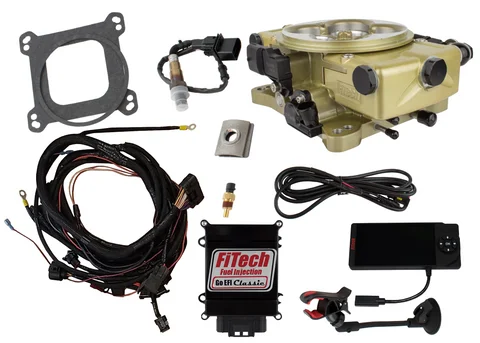

FiTech Go EFI Classic Gold 650HP External ECU (30020)

Description

The FiTech Go EFI Classic Gold 650HP External ECU (30020) offers a blend of classic aesthetics and modern EFI technology. Designed for enthusiasts seeking the look of a traditional carburetor with the performance and reliability of electronic fuel injection, this system is rated for up to 650 horsepower. Its self-tuning capability adapts to your driving habits, ensuring optimal performance across various conditions.

KEY FEATURES AND BENEFITS:

• Improved Engine Performance: Better cold starts and enhanced throttle response.
• Self-Tuning Feature: Simplifies setup and maintenance, adapting to your driving style.
• Classic Appearance: Gold finish and hidden injectors maintain a traditional carburetor look.
• Versatile Compatibility: Works with 4150 square bore and spread bore manifolds for various engine setups.
• Touchscreen Controller: Allows for easy monitoring and adjustments.
• Real-Time Fuel Mapping: Bosch wideband oxygen sensor ensures efficient operation.

SPECIFICATIONS:

• Horsepower Rating: Up to 650 HP
• Throttle Body: 4-barrel square bore/spread bore compatible, 45mm venturi
• Injectors: 80 lb/hr
• ECU: Externally mounted, self-tuning
• Sensors: Bosch wideband oxygen, MAP, IAT, TPS, CTS
• Display: 4.5-inch touchscreen
• Fuel System: Requires external 58 PSI fuel delivery
• Ignition: Integrated timing control, coil driver
• Finish: Gold

HOW TO USE:

• Install the Throttle Body: Secure the FiTech throttle body onto your intake manifold, ensuring a proper gasket seal.
• Mount the ECU: Position the external ECU in a suitable location, away from excessive heat.
• Install the Oxygen Sensor: Place the Bosch wideband oxygen sensor in the exhaust system.
• Connect Sensors and Wiring: Follow the provided instructions to connect all necessary sensors and wiring harnesses.
• Establish Fuel Delivery: Ensure a fuel delivery system capable of providing 58 PSI of fuel pressure.
• Connect the Touchscreen Controller: Link the handheld touchscreen controller to the ECU.
• Setup System Parameters: Follow on-screen prompts to configure the system settings.
• Start the Engine: Allow the system to self-tune over time.
• Monitor and Adjust: Use the touchscreen to check engine data and make adjustments as necessary.

BENEFITS OF USING THE FITECH GO EFI CLASSIC GOLD 650HP EXTERNAL ECU (30020):

• Eliminates common carburetor issues like cold start problems and vapor lock.
• Provides improved fuel efficiency and throttle response.
• Offers a classic aesthetic with modern EFI performance.
• Simplified tuning process with self-learning capabilities.

FEATURES:

• Dual Bolt Pattern: Compatible with 4150 and spread bore manifolds.
• Integrated Ignition Control: Features ignition timing control and coil driver.
• High-Flow Construction: Aluminum throttle body for efficient airflow.
• Easy Installation: Includes clamp-on oxygen sensor kit for secure mounting.
• Flexible Metering Styles: Utilizes speed density (Map-N) and speed throttle (Alpha-N) metering.
• Integrated Sensors: All sensors, except O2 and coolant, are built into the throttle body.
• Compatibility: Works with factory throttle linkage and most 4-barrel intake manifolds.
• Fuel Type Compatibility: Supports alcohol, gasoline, methanol, and flex fuel.
