Description

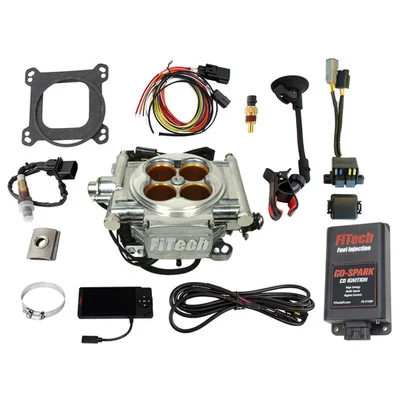

The FiTech Go EFI 8 PA 1200 HP System w/ Go Spark CDI Ignition (93013) is a high-performance fuel injection solution designed for engines producing up to 1,200 horsepower. This system is tailored for enthusiasts seeking significant power gains, especially in boosted or nitrous-assisted applications. It includes a throttle body design, a Go Spark CDI ignition box, and comprehensive tuning capabilities.
KEY FEATURES AND BENEFITS:
- Supports up to 1,200 horsepower, suitable for high-performance engines.
- Throttle body fuel injection style simplifies installation and maintenance.
- Go Spark CDI ignition enhances spark output for improved combustion and power.
- Self-tuning capabilities allow for automatic adjustments, optimizing performance.
- User-tunable with included Pro-tuning software for precise control.
- Data logging functionality enables performance analysis and optimization.
- Built-in 2.5 BAR MAP sensor handles increased boost pressures.
- 80 lbs/hr injectors provide ample fuel flow for high-demand applications.
- 4.5-inch display for monitoring and adjustment.
SPECIFICATIONS:
- Fuel Injection Style: Throttle body
- Maximum Horsepower: 1,200 HP
- Injector Size: 80 lbs/hr
- Throttle Body Mounting Flange: 4-barrel square bore (4150 flange)
- Airflow Rate: 850 CFM
- Venturi Diameter: 44.00mm
- MAP Sensor: 2.5 BAR
- Ignition: Go Spark CDI included
- Display: 4.5-inch display
- Metering Style: Speed density
HOW TO USE:
- Installation: Mount the throttle body to the 4-barrel intake manifold. Connect the wiring harness to the engine and sensors. Install the Go Spark CDI ignition box.
- Sensor Installation: Install the wideband oxygen sensor, coolant sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor as per the provided instructions.
- Wiring: Connect the wiring harness to the vehicle’s electrical system, including power and ground connections.
- Initial Setup: Connect the handheld controller to the system. Use the display to input basic engine parameters.
- Self-Tuning: Start the engine and allow the system to self-tune. Drive the vehicle under various conditions to optimize fuel delivery.
- User Tuning: Connect a laptop using the provided mini USB cable and Pro-tuning software for advanced adjustments.
- Data Logging: Use the Pro-tuning software to record and analyze engine performance data.
- Ignition Setup: Connect the CDI ignition to the distributor, following the provided wiring diagram.
- Fuel System: Install a proper fuel system to support the 1,200 HP, as this unit does not come with one.
BENEFITS OF USING THE FITECH GO EFI 8 PA 1200 HP SYSTEM W/ GO SPARK CDI IGNITION (93013):
- Improved engine performance and power output.
- Precise fuel delivery and optimized air-fuel ratio.
- Enhanced spark output for better combustion.
- Simplified installation compared to multi-port systems.
- User-friendly interface and tuning capabilities.
- Reliable performance under high-demand conditions.
- Ability to monitor engine parameters in real time.
FEATURES:
- Eight high-flow injectors for optimal fuel delivery.
- Annular discharge design with 20 jet streams.
- Built-in timing controls based on boost or nitrous input.
- Compatible with various distributor types.
- Includes a wideband oxygen sensor for accurate readings.
- Pro-tuning laptop software for advanced adjustments.
- 850 CFM airflow.
- Cast aluminum throttle body.
