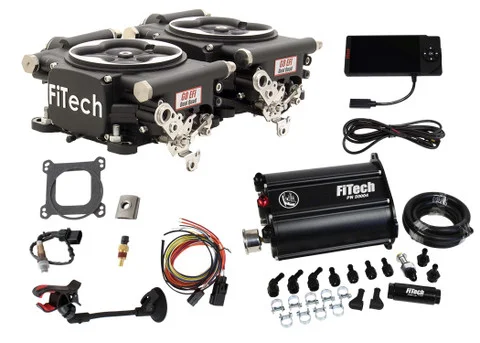

FiTech Go EFI 2×4 625HP Black Master Kit w/Force Fuel (35262)

Description

The FiTech Go EFI 2×4 625HP Black Master Kit w/Force Fuel (35262) offers a comprehensive electronic fuel injection upgrade for classic and performance vehicles. This dual-quad throttle body system, paired with the Force Fuel delivery system, provides consistent fuel pressure and improved engine performance. Designed for engines up to 625 horsepower, it brings modern EFI technology to older engines.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capabilities: Simplifies installation and adjustments.
• Force Fuel System: Ensures a steady fuel supply, preventing starvation.
• Handheld Touchscreen Controller: For easy setup and on-the-fly adjustments.
• 8GB Data Logging: For performance monitoring and analysis.
• Compatibility: Works with various intake manifolds, including tunnel rams and factory styles.
• Precise Control: Manages air/fuel ratio and ignition timing.
• Fuel Compatibility: Functions with gasoline, methanol, ethanol, and flex fuels.

SPECIFICATIONS:

• Horsepower Rating: Up to 625HP
• Throttle Body: Dual 4-barrel, 4150 flange
• Injector Size: 80 lbs/hr
• Fuel Pump Flow: 340 lph (Force Fuel)
• Fuel Pressure: 58 psi (regulated)
• Data Logging: 8GB
• Display: 4.5-inch Touchscreen
• Venturi Diameter: 44.45mm
• Airflow Rate: 850 cfm

HOW TO USE:

• Installation:
  • Mount the dual throttle bodies to the intake manifold.
  • Install the Force Fuel system in a suitable location.
  • Connect the wiring harness to the vehicle’s electrical system.
  • Install the O2 sensor into the exhaust system.
• Initial Setup:
  • Connect the handheld controller and follow the on-screen prompts.
  • Input engine specifications and desired parameters.
  • Initialize the self-learning function.
• Tuning:
  • Use the handheld controller to monitor and adjust air/fuel ratios and timing.
  • Review data logs for performance analysis.
  • Make fine adjustments as needed.
• Fuel System Prep:
  • Connect fuel lines from the original fuel pump to the Force Fuel system, then from the Force Fuel system to the dual throttle bodies.

BENEFITS OF USING THE FITECH GO EFI 2X4 625HP BLACK MASTER KIT W/FORCE FUEL (35262):

• Improved engine performance and efficiency.
• Consistent fuel delivery under various driving conditions.
• Simplified tuning and adjustments with the handheld controller.
• Enhanced reliability and reduced maintenance.
• Modernizes engine performance in classic vehicles.

FEATURES:

• Dual Throttle Bodies: Equipped with eight injectors.
• Force Fuel System: Includes integrated fuel pump and regulator.
• GM-Type Sensors: Along with a Bosch wideband oxygen sensor.
• Adjustable Fan Control Switch: For temperature management.
• Multi Fuel Compatibility: Works with various fuel types.
• Real-Time Monitoring: Ability to monitor real-time sensor data via the handheld controller.
• Designed for Simple Installation: Streamlined setup process.
