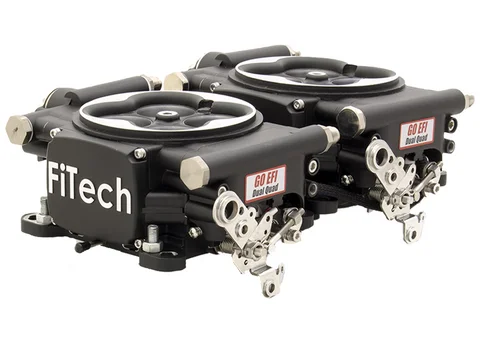

FiTech Go EFI 2×4 625HP Matte Black Finish System (30062)

Description

The FiTech Go EFI 2×4 625HP Matte Black Finish System (30062) offers a modern electronic fuel injection solution for classic V8 engines traditionally equipped with dual 4-barrel carburetors. Designed for engines producing between 200 and 625 horsepower, this system provides self-tuning capabilities, simplifying the transition to EFI. The kit includes two throttle bodies, one with an integrated ECU, and a handheld touchscreen controller for easy adjustments. This system is designed to bolt onto most dual quad intake manifolds.

KEY FEATURES AND BENEFITS:

• Self-Tuning Functionality: Adapts to various driving and weather conditions.
• Power Range Support: Compatible with engines from 200 to 625 horsepower.
• Direct Replacement: Replaces traditional dual 4-barrel carburetors.
• Handheld Touchscreen Controller: Allows for simple tuning adjustments.
• Easy Installation: Direct bolt-on for popular dual quad intake manifolds.
• Complete Sensor Kit: Includes necessary sensors (O2, MAP, IAT, TPS, coolant).
• Classic Aesthetic: Matte black finish enhances the traditional look.

SPECIFICATIONS:

• Maximum horsepower: 625 HP
• Injection style: Throttle body
• Metering style: Speed density (Map-N) or speed throttle (Alpha-N)
• Throttle body mounting flange: Dual 4-barrel square bore
• Venturi quantity: 8
• Venturi diameter: 43 mm
• Airflow rate: 1700 CFM
• Injector size: 36 lb/hr
• Fuel type: Gasoline, Alcohol, Methanol, Flex
• MAP sensor: 1 BAR internal

HOW TO USE:

• Preparation: Remove existing dual 4-barrel carburetors and clean the intake manifold.
• Installation: Install the FiTech throttle bodies onto the intake manifold, ensuring a proper seal.
• Wiring Connection: Connect the wiring harness to the throttle bodies and engine sensors (O2, MAP, IAT, TPS, coolant).
• O2 Sensor Installation: Mount the O2 sensor in the exhaust system.
• Handheld Controller Connection: Connect the handheld controller to the wiring harness.
• Fuel Supply: Supply fuel to the throttle bodies using appropriate fuel lines (not included).
• Initial Start: Start the engine and allow the self-tuning system to calibrate.
• Monitoring and Adjustment: Use the handheld controller to monitor and adjust settings as needed.

BENEFITS OF USING THE FITECH GO EFI 2×4 625HP MATTE BLACK FINISH SYSTEM (30062):

• Improved engine performance and fuel efficiency.
• Simplified tuning compared to traditional carburetors.
• Enhanced cold start and idle stability.
• Consistent performance across varying driving conditions.
• Modern EFI technology with classic dual quad aesthetics.
• Reliable fuel delivery for optimal performance.

FEATURES:

• Integrated ECU: Incorporated within one of the throttle bodies.
• Flow-Matched Injectors: Ensures precise fuel delivery.
• Built-in Fuel Pressure Regulator: For stable fuel pressure.
• Fan Control Output: Enhances cooling efficiency.
• Compatibility: Works with timing control systems.
• Complete Installation Kit: Includes all required sensors and installation hardware.
• Display Screen: Features a 4.5 inch display for easy monitoring.
• Alpha-N Operation: Capable of operating in Alpha-N mode.
• Return Plugs Included: For added installation convenience.
