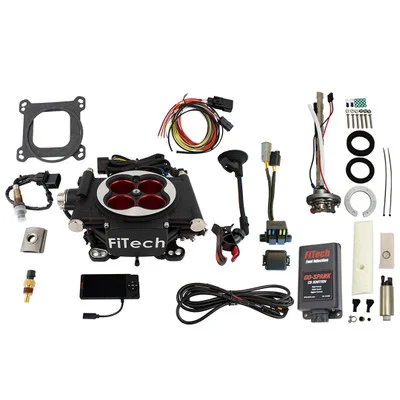

FiTech EFI 4 600HP Power Adder Matte Black w/340LPH Pump & CDI (96204)

Description

The FiTech EFI 4 600HP Power Adder Matte Black w/ 340LPH Pump & CDI (96204) is a comprehensive solution designed to convert 4-barrel carbureted engines to electronic fuel injection. This kit includes all the necessary components for a complete fuel and ignition system upgrade, aimed at enhancing engine performance and efficiency.

KEY FEATURES AND BENEFITS:

• This kit converts carbureted engines to electronic fuel injection, providing improved power output, starting, idle quality, and throttle response.
• Includes a throttle body, in-tank fuel pump, and CDI ignition system.
• The self-learning technology allows for automatic adjustments to the air/fuel ratio.
• User-tunable options provide customization for specific performance needs.
• The system supports up to 600 horsepower and is compatible with boost and nitrous applications.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
• Maximum Horsepower: 600
• Timing Control: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System: In-tank fuel pump module, return
• Ignition System: Ignition box
• User Interface: 4.5 in. display
• Throttle Body Airflow: 850 CFM
• Injector Size: 80 lbs./hr.

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and related components.
• Fuel System Installation: Install the in-tank fuel pump module or chosen fuel delivery system, ensuring proper connections and fuel line routing.
• Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold, securing it with the provided hardware.
• Sensor Installation: Install the wideband oxygen sensor, coolant sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor in their designated locations.
• Wiring Harness Connection: Connect the wiring harness to the sensors, injectors, ignition system, and ECM according to the provided instructions.
• Ignition System Installation: Mount the Go-Spark CDI ignition box and connect it to the distributor and wiring harness.
• ECM Setup: Connect the touchscreen handheld controller to the ECM and follow the on-screen prompts to configure the system.
• Initial Startup: Reconnect the battery and start the engine. Allow the system to self-learn and make necessary adjustments.
• Tuning: Use the handheld controller or laptop software for fine-tuning as needed.

BENEFITS OF USING THE FITECH EFI 4 600HP POWER ADDER MATTE BLACK W/ 340LPH PUMP & CDI (96204):

• Enhanced engine performance with improved horsepower and torque.
• Improved fuel efficiency and reduced emissions.
• Consistent and reliable engine operation in various conditions.
• Simplified engine starting and smoother idle.
• Ability to handle boost and nitrous applications.
• User-friendly interface for easy setup and adjustments.

FEATURES:

• 4-barrel square bore throttle body design.
• 80 lbs./hr fuel injectors.
• Go-Spark CDI ignition with multiple spark capability at low RPM.
• Touchscreen handheld controller for system adjustments.
• Self-learning technology for automatic air/fuel ratio tuning.
• In-tank 340 lph fuel pump module with return.
• Compatibility with various distributor types.
• Pro-Tuning laptop software for advanced tuning.
• Wideband oxygen sensor for accurate air/fuel ratio monitoring.
• Ability to control ignition timing based on boost or nitrous.
