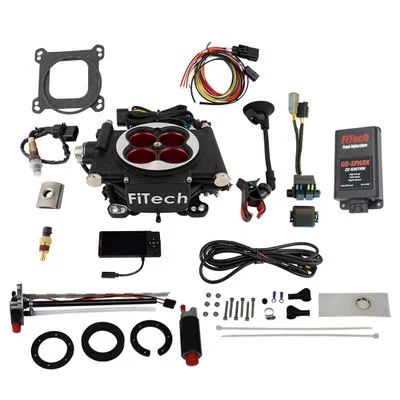

FiTech EFI 4 600HP EFI Power Adder Black w/Retrofit & CDI Box (93604)

Description

The FiTech EFI 4 600HP EFI Power Adder Black w/Retrofit & CDI Box (93604) replaces traditional 4-barrel carburetors, providing modern electronic fuel injection. Designed for engines up to 600 HP, this system is well-suited for street rods, cruisers, and performance vehicles. It features self-learning capabilities for simplified tuning and is compatible with power adders like turbochargers and nitrous oxide. The kit includes an in-tank fuel pump module, simplifying fuel system upgrades.

KEY FEATURES AND BENEFITS:

• Significant Improvements: Enhances fuel delivery and engine control for optimized performance.
• Power Support: Supports engines from 200 HP to 600 HP, accommodating boosted applications with a 2.5 BAR MAP sensor.
• Self-Tuning Feature: Automatically adjusts fuel delivery, eliminating the need for complex manual tuning.
• In-Tank Fuel Pump Module: Simplifies installation and ensures consistent fuel pressure.
• High Performance: The 850 CFM throttle body and 80 lbs./hr. injectors provide ample fuel and air for high-performance engines.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatible: Yes
• ECU Included: Yes
• Fuel Pump: In-tank, 340 LPH
• Throttle Body: 850 CFM, 4-barrel square bore
• Injectors: 80 lbs./hr.
• Metering Style: Speed density (MAP-N)
• Fuel Compatibility: Gasoline, E85, methanol, alcohol

HOW TO USE:

• Install the Throttle Body: Mount the throttle body to your 4-barrel intake manifold.
• Install the Fuel Pump Module: Place the in-tank fuel pump module inside your fuel tank.
• Connect Wiring Harness: Attach the provided wiring harness, connecting sensors and the ECU.
• Connect Sensors: Connect the MAP, IAT, TPS, and oxygen sensors to the appropriate locations.
• Connect Ignition Box: Install the ignition box and connect it to the ECU and ignition system.
• Connect the Touchscreen: Plug in the 4.5-inch touchscreen controller.
• Initial Setup: Input basic engine parameters using the touchscreen.
• Start Engine: Start the engine and allow the system to self-learn.
• Monitor and Adjust: Use the touchscreen to monitor engine performance and make minor adjustments if needed.

BENEFITS OF USING THE FITECH EFI 4 600HP EFI POWER ADDER BLACK W/RETROFIT & CDI BOX (93604):

• Improved Fuel Efficiency: Enhances overall engine performance compared to carburetors.
• Simplified Installation: Easier setup and tuning compared to traditional systems.
• Reliable Operation: Consistent performance under varying conditions.
• Enhanced Engine Control: Timing adjustment capabilities for better performance.
• Compatibility with Boosted Engines: Works well with turbochargers and nitrous oxide systems.
• Consistent Fuel Delivery: The in-tank fuel pump ensures reliable fuel pressure.
• Easy Monitoring: The included display allows for straightforward monitoring of engine parameters.

FEATURES:

• Integrated ECU: Includes a MAP sensor and fuel pressure regulator.
• Throttle Body: 850 CFM with a 43mm venturi for optimal airflow.
• Injectors: 80 lbs./hr. flow-matched for effective fuel delivery.
• Fan Control: Supports dual electric fans for improved cooling.
• Boost and Nitrous Timing Retard: Enhances performance under boost conditions.
• Touchscreen Controller: 4.5-inch for setup and monitoring.
• MAP Sensor: 2.5 BAR internal MAP sensor for boosted applications.
• Multiple Fuel Type Compatibility: Works with various fuels for versatility.
• Ignition Box Included: For improved ignition performance.
