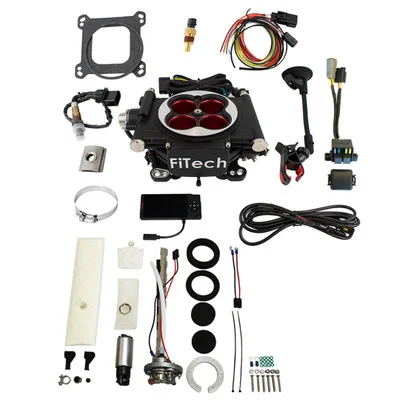

FiTech EFI 4 600 HP Power Adder Matte Black w/ In-Tank Pump (36504)

Description

The FiTech EFI 4 600 HP Power Adder Matte Black w/ In-Tank Pump (36504) provides a complete electronic fuel injection solution for engines producing up to 600 horsepower. This throttle body injection system is designed for performance applications, including those with boost or nitrous oxide power adders. The kit includes all essential components, such as an ECU, in-tank fuel pump, and necessary sensors. This system provides a modern upgrade to older carbureted engines, improving performance and fuel efficiency.

KEY FEATURES AND BENEFITS:

• High Power Support: Supports up to 600 horsepower, suitable for high-performance engines.
• Power Adder Compatibility: Designed for boosted or nitrous applications.
• Complete Master Kit: Includes ECU, fuel pump, and necessary sensors for an all-in-one solution.
• Optimized Engine Performance: Timing control compatibility for enhanced performance.
• Accurate Fuel Delivery: Speed density (MAP-N) metering ensures precise fuel management.
• High-Flow Capacity: Features 80 lbs/hr injectors and an 850 CFM throttle body.
• Multi-Fuel Compatibility: Compatible with various fuel types including alcohol, gasoline, methanol, and flex fuel.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder: Yes (Boost/Nitrous oxide)
• ECU: Included
• Fuel Pump: Included (In-tank)
• Metering Style: Speed density (MAP-N)
• Throttle Body: 4-barrel square bore, 850 CFM
• Injectors: 80 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Remove Existing Carburetor: Detach the current carburetor and related components from the intake manifold.
• Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided hardware.
• Install Fuel Pump: Place the in-tank fuel pump within the fuel tank, ensuring proper connections.
• Connect Wiring Harness: Route and connect the wiring harness to the ECU and engine sensors.
• Install Sensors: Mount the oxygen, MAP, IAT, and TPS sensors as per the instructions.
• Connect Fuel Lines: Connect the fuel lines from the fuel pump to the throttle body, ensuring secure connections.
• Connect ECU: Connect the ECU to the wiring harness and mount it in a secure location.
• Initial Setup: Follow the manufacturer’s instructions for initial ECU setup and calibration.
• Start and Tune: Start the engine and fine-tune the EFI system using the calibration module.

BENEFITS OF USING THE FITECHEFI 4 600 HP POWER ADDER MATTE BLACK W/ IN-TANK PUMP (36504):

• Improved Fuel Efficiency: Offers better fuel economy compared to traditional carburetors.
• Enhanced Performance: Increases engine performance and responsiveness.
• Simplified Tuning: Easy calibration with the included ECU for straightforward setup.
• Reliable Operation: Functions well under various driving conditions.
• Versatile Fuel Options: Ability to run multiple fuel types for flexibility.

FEATURES:

• Durable Construction: Cast aluminum throttle body for long-lasting performance.
• Attractive Finish: Black throttle body finish for a sleek appearance.
• Complete Sensor Suite: All necessary sensors included for comprehensive engine management.
• High Airflow Rate: 850 CFM airflow capacity for increased performance.
• Venturi Diameter: 43 mm for optimal fuel and air mixture.
• In-Tank Fuel Pump: Included for reliable fuel delivery.
• Calibration Module: Comes with a calibration module for easy tuning.
• Wiring Harness: Complete wiring harness included for easy installation.
