FiTech EFI 4 600 HP Bright Aluminum w/ In-Tank Pump (36501)

Description

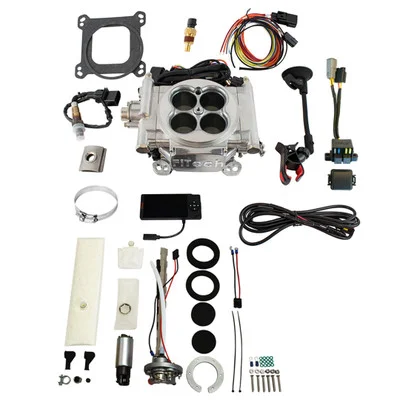

The FiTech EFI 4 600 HP Bright Aluminum w/ In-Tank Pump (36501) simplifies the process of converting your carbureted engine to electronic fuel injection. This comprehensive kit provides a complete solution, including a self-tuning throttle body injection system and an in-tank fuel pump, designed for engines up to 600 horsepower.

KEY FEATURES AND BENEFITS:

• Self-Tuning ECU: Adapts to your engine’s needs, eliminating the need for complex manual adjustments.
• Wide Compatibility: Supports 4, 6, and 8-cylinder engines and is compatible with various fuel types.
• Handheld Controller: Allows for easy setup, monitoring, and on-the-fly adjustments to air/fuel ratios and ignition timing.
• Consistent Fuel Delivery: The included in-tank 255 LPH fuel pump ensures reliable fuel flow.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Throttle Body: 4-barrel square bore, 850 CFM
• Injectors: 80 lbs/hr
• Fuel Pump: 255 LPH in-tank, 58 PSI regulator
• ECU: Self-tuning
• Metering: Speed density (MAP-N)
• Timing Control: Yes
• Venturi Diameter: 44 mm

HOW TO USE:

• Fuel Pump Installation: Install the included 255 LPH in-tank fuel pump into your fuel tank, ensuring proper connections.
• Throttle Body Mounting: Mount the FiTech throttle body onto your 4-barrel intake manifold.
• Sensor Connections: Connect the provided sensors (MAP, IAT, TPS, Oxygen) to the throttle body and engine.
• Wiring Harness Connection: Connect the wiring harness to the vehicle’s electrical system, following the provided instructions.
• Handheld Controller Setup: Use the handheld controller to input basic engine parameters and initiate the self-tuning process.
• Initial Engine Start: Start the engine and allow the ECU to learn and adjust fuel delivery.
• Fine-Tuning (Optional): Use the handheld controller to make any necessary adjustments to air/fuel ratios or ignition timing.

BENEFITS OF USING THE FITECH EFI 4 600 HP BRIGHT ALUMINUM W/ IN-TANK PUMP (36501):

• Improved Performance: Enhances engine responsiveness and overall performance.
• Enhanced Fuel Efficiency: Optimizes fuel usage for better economy.
• Simplified Startup: Provides smoother idle and easier starting.
• Reduced Emissions: Helps lower emissions for a cleaner operation.
• Easy Installation: Comprehensive kit with self-tuning capabilities for straightforward setup.

FEATURES:

• Internal MAP Sensor: For accurate pressure readings.
• Adjustable Fan Control Switches: For managing engine cooling effectively.
• GM-Type Sensors: Uses standard GM-type sensors and a Bosch wideband oxygen sensor.
• Built-In Pressure Regulator: Maintains optimal fuel pressure.
• OBD II Fault Code Readouts: For easy diagnostics.
• Spark Control: Provides spark control without the need for an external spark box.
• Airflow: Supports 850 CFM airflow for high performance.
• High-Flow Injectors: 80 lbs/hr injectors ensure efficient fuel delivery.
