Description

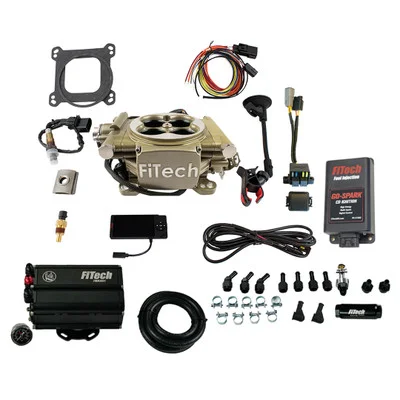

The FiTech Easy Street 600 HP Classic Gold EFI w/ Force Fuel & CDI (93555) provides a straightforward method to convert your carbureted engine to electronic fuel injection. Designed for engines producing 200 to 600 horsepower, this kit offers self-tuning capabilities and improved performance without the complexities of full timing control. It’s ideal for those seeking better efficiency and throttle response in non-emission controlled vehicles.
KEY FEATURES AND BENEFITS:
- Comprehensive EFI Conversion: This kit offers a complete solution for converting to EFI.
- Self-Tuning Feature: The ECU automatically adjusts fuel delivery based on real-time sensor data for optimal performance.
- Enhanced Ignition Performance: The included Go-Spark CDI box improves ignition quality, particularly at low RPMs, enhancing starting and idle quality.
- Consistent High-Pressure Fuel Supply: The Force Fuel Mini Fuel Delivery Surge Tank maintains a reliable fuel supply, essential for efficient EFI operation.
- Direct Replacement: Replaces standard 4-barrel carburetors, making installation simple for those with basic mechanical skills.
SPECIFICATIONS:
- Maximum Horsepower: 600 HP
- Injection Style: Throttle body
- Metering Style: Speed density (MAP-N)
- Throttle Body Mounting Flange: 4-barrel square bore
- Venturi Quantity: 4
- Injector Size: 80 lbs./hr.
- Fuel Pump Flow Rating (Surge Tank): 255 LPH
- ECU Included: Yes
- Self Tuning: Yes
- User Tunable: Yes
- Oxygen Sensor Included: Yes
- Fuel Pressure Regulator Included: Yes
- MAP Sensor Included: Yes
- IAT Sensor Included: Yes
- TPS Sensor Included: Yes
- IAC Motor Included: Yes
- Ignition System Included: Go-Spark CDI box
- Fuel System Included: Force Fuel Mini Surge tank
- Compatibility: Fits Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, and other engines with a 4-barrel intake manifold.
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing 4-barrel carburetor.
- Installation of Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold using the provided gasket.
- Sensor Installation: Install the O2 sensor into the exhaust system using the included bung kit, and connect the coolant temperature sensor.
- Wiring: Connect the wiring harness to the throttle body, sensors, and ignition system. Connect the tach signal wire to the coil, HEI, or CDI as needed.
- Fuel System: Mount the Force Fuel Mini Fuel Delivery Surge Tank, connect the fuel lines, and ensure proper fuel pressure.
- CDI Installation: Install the Go-Spark CDI box and connect it to the distributor and power source.
- Handheld Controller: Connect the handheld controller and follow the on-screen prompts for initial setup.
- Initial Start-up: Start the engine and allow the self-tuning feature to adjust the fuel mixture.
- Verification: Check for leaks and ensure all connections are secure.
BENEFITS OF USING THE FITECH EASY STREET 600 HP CLASSIC GOLD EFI W/ FORCE FUEL & CDI (93555):
- Improved Engine Performance: Enhanced throttle response and overall power delivery.
- Enhanced Fuel Efficiency: Achieves better fuel economy through precise fuel delivery.
- Simplified Installation: Easier setup compared to traditional EFI systems.
- Self-Tuning Capability: Reduces the need for manual adjustments during setup.
- Improved Ignition Performance: The Go-Spark CDI box enhances spark quality for better combustion.
FEATURES:
- Classic Gold Finish: Attractive finish on the throttle body for a stylish look.
- 80 lbs./hr. Flow Matched Injectors: Ensures adequate fuel delivery for performance engines.
- Integrated Fuel Pressure Regulator: Simplifies fuel system management.
- Wideband O2 Sensor: For accurate air-fuel ratio monitoring.
- Handheld Controller: For easy monitoring and adjustments to the EFI system.
- Included Go-Spark CDI Ignition Box: For enhanced spark performance.
- Force Fuel Mini Surge Tank: Ensures consistent fuel delivery under varying conditions.
- Easy Tach Signal Reading: Compatible with multiple ignition types for versatility.
