FiTech Classic Gold 650 HP EFI w/ 340 LPH In-Tank Pump (36620)

Description

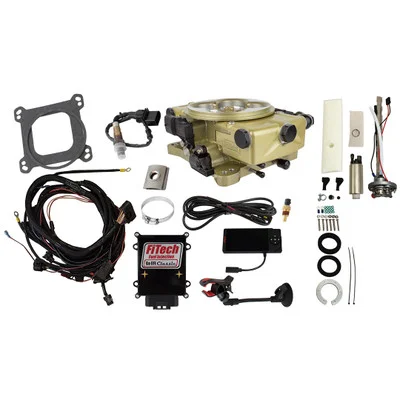

The FiTech Classic Gold 650 HP EFI w/ 340 LPH In-Tank Pump (36620) offers a straightforward electronic fuel injection solution for engines up to 650 horsepower. This kit replaces traditional carburetors with a throttle body EFI system, providing improved fuel delivery and performance. It includes essential components for a complete installation, such as an ECU, fuel pump, and necessary sensors.

KEY FEATURES AND BENEFITS:

• High Power Support: Rated for engines up to 650 HP, delivering a significant performance upgrade.
• Speed Density (MAP-N) Metering: Ensures accurate fuel delivery for optimal performance.
• In-Tank 340 LPH Fuel Pump: Included for reliable fuel supply.
• Gold Finish Throttle Body: Adds a distinct aesthetic to your engine bay.
• Fuel Type Compatibility: Works with gasoline, alcohol, methanol, and flex fuel.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Throttle body
• Metering Style: Speed density (MAP-N)
• Airflow Rate: 950 CFM
• Injector Size: 80 lbs/hr
• Throttle Body: 4-barrel square bore, gold finish
• Fuel Pump: In-tank, 340 LPH
• Fuel Compatibility: Gasoline, alcohol, methanol, flex fuel
• ECU, Sensors, and Wiring Harness: Included

HOW TO USE:

• Remove Existing Carburetor: Detach the current carburetor and associated fuel lines.
• Install Throttle Body: Mount the FiTech 36620 throttle body onto the intake manifold.
• Install Fuel Pump: Place the in-tank fuel pump within the fuel tank and connect the fuel lines.
• Connect Wiring Harness: Route the wiring harness and connect the sensors (O2, MAP, IAT, TPS).
• Connect ECU: Mount the ECU and connect it to the wiring harness.
• Calibrate the System: Use the included calibration module to set up the system.
• Test and Adjust: Start the engine and make necessary adjustments for optimal performance.

BENEFITS OF USING THE FITEC CLASSIC GOLD 650 HP EFI W/ 340 LPH IN-TANK PUMP (36620):

• Improved Fuel Efficiency: Offers enhanced throttle response compared to traditional carburetors.
• Consistent Performance: Electronic fuel injection provides reliable performance across various driving conditions.
• Simplified Installation: The included components make installation easy and straightforward.

FEATURES:

• Integrated ECU: For simplified control of the system.
• Complete Wiring Harness: Ensures easy connections for installation.
• Included Sensors: Oxygen, MAP, IAT, and TPS sensors are all included.
• In-Tank Regulated Fuel Pump: For reliable fuel delivery.
• Calibration Module: Facilitates initial system setup.
• 80 lbs/hr Fuel Injectors: For high-performance fuel delivery.
• 950 CFM Flow Rate: Supports high airflow demands.
