FiTech Classic Black 650 HP EFI w/ 340 LPH Pump & CDI Box (96721)

Description

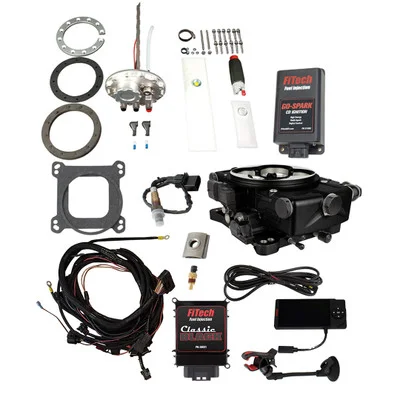

The FiTech Classic Black 650 HP EFI w/ 340 LPH Pump & CDI Box (96721) is a comprehensive electronic fuel injection conversion kit designed to replace traditional carburetors. This master kit includes a throttle body, in-tank fuel pump module, and Go-Spark CDI ignition, providing a complete solution for improved engine performance and fuel efficiency. Ideal for engines producing up to 650 horsepower, this system combines classic aesthetics with modern EFI technology.

KEY FEATURES AND BENEFITS:

• Complete EFI Conversion: Includes throttle body, fuel pump, and ignition for a full upgrade.
• 650 HP Rating: Supports engines up to 650 horsepower.
• Self-Tuning ECU: Simplifies setup and optimizes engine performance.
• In-Tank Fuel Pump: Provides consistent fuel delivery with an internal regulator.
• Go-Spark CDI Ignition: Enhances spark performance for improved combustion.
• Classic Look: Designed to resemble a traditional carburetor.
• Fuel Compatibility: Works with gasoline, alcohol, methanol, and flex fuel.
• Speed Density Metering: Uses a MAP sensor to calculate engine load.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Throttle Body: 4-barrel square bore (4150 flange), 850 CFM, 44mm venturi
• Injectors: 80 lbs/hr
• Fuel Pump: In-tank module, returnless
• Ignition: Go-Spark CDI
• ECU: Included, self-tuning
• Display: 4.5-inch handheld
• Sensors: MAP, IAT, TPS, Oxygen

HOW TO USE:

• Remove Existing Carburetor: Disconnect and remove the existing carburetor and related components.
• Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the 4150 flange.
• Install Fuel Pump: Place the in-tank fuel pump module into the fuel cell or custom tank.
• Connect Wiring Harness: Connect the provided wiring harness to the engine sensors and ignition system.
• Install Go-Spark Ignition: Install the CDI ignition box and connect it to the distributor.
• Connect Sensors: Install the MAP, IAT, TPS, and oxygen sensors.
• Connect Fuel Lines: Connect the fuel lines from the pump to the throttle body.
• Power Connections: Connect the power and ground wires to the vehicle’s electrical system.
• Initial Setup: Use the handheld display to input engine parameters and start the self-tuning process.
• Fine-Tuning: Allow the ECU to self-tune, and make adjustments as needed using the display.

BENEFITS OF USING THE FITEC CLASSIC BLACK 650 HP EFI W/ 340 LPH PUMP & CDI BOX (96721):

• Improved fuel efficiency compared to traditional carburetors.
• Enhanced engine performance and throttle response.
• Simplified starting and drivability in various conditions.
• Reduced risk of flooding and vapor lock.
• Modern EFI technology with a classic aesthetic.
• Wide range of fuel compatibility.

FEATURES:

• Dual bolt pattern throttle body for easy intake manifold mounting.
• Internal fuel pressure regulator within the fuel pump module.
• Multi-spark CDI ignition for consistent spark delivery.
• User interface via a 4.5-inch handheld display.
• 850 CFM airflow rate.
• 80 lbs/hr fuel injectors.
• Cast aluminum throttle body.
• Black throttle body finish.
