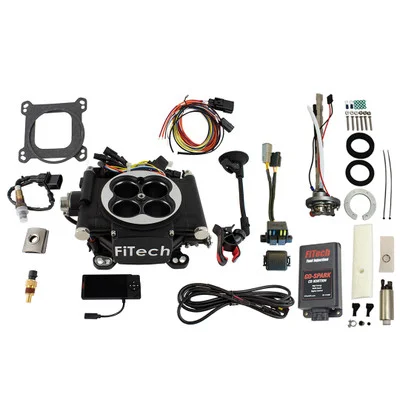

FiTech 600HP Matte Black EFI w/ 340 LPH Pump & CDI Box (96202)

Description

The FiTech 600HP Matte Black EFI w/ 340 LPH Pump & CDI Box (96202) offers a complete solution for converting carbureted vehicles to electronic fuel injection. This kit provides a throttle body EFI system, fuel delivery components, and an enhanced ignition system for improved engine performance and efficiency. Designed for engines up to 600 horsepower, this kit simplifies the conversion process with its self-learning capabilities and comprehensive component selection.

KEY FEATURES AND BENEFITS:

• The FiTech 96202 kit includes a 4-barrel throttle body EFI system designed for easy installation and tuning.
• The self-learning feature automatically adjusts fuel delivery for optimal performance.
• The included Go-Spark CDI ignition provides a high-energy spark for improved combustion.
• The kit offers various fuel delivery options, including in-tank and in-line pump modules, to suit different vehicle setups.
• The 4.5-inch touchscreen handheld controller allows for user tuning and monitoring.
• This kit provides a complete solution for those looking to upgrade their carbureted engine to modern EFI technology.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Maximum Horsepower: 600
• Throttle Body: 4-barrel square bore, 850 cfm
• Injectors: 80 lbs./hr
• Ignition: Go-Spark CDI
• Fuel Delivery: In-tank or in-line pump options
• Tuning: Self-learning and user-tunable
• Display: 4.5-inch touchscreen
• Venturi Diameter: 44.00mm

HOW TO USE:

• Remove Existing Carburetor: Disconnect the fuel lines, linkages, and any other components connected to the carburetor.
• Install Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold using the provided gasket.
• Install Fuel System: Choose and install the appropriate fuel pump module (in-tank or in-line) and connect the fuel lines.
• Install Ignition System: Connect the Go-Spark CDI ignition system to the distributor and other necessary components.
• Connect Wiring Harness: Connect the wiring harness to the throttle body, sensors, and ignition system.
• Install Sensors: Install the oxygen sensor, coolant sensor, and other provided sensors.
• Connect Handheld Controller: Connect the 4.5-inch touchscreen handheld controller to the system.
• Initial Setup: Follow the instructions on the handheld controller to perform the initial setup and configuration.
• Start and Self-Learn: Start the engine and allow the system to self-learn and adjust fuel delivery.
• Fine-Tune (Optional): Use the handheld controller to fine-tune the system for optimal performance.

BENEFITS OF USING THE FITECH 600HP MATTE BLACK EFI W/ 340 LPH PUMP & CDI BOX (96202):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency.
• Easier starting and smoother idle.
• Simplified tuning with self-learning capabilities.
• Comprehensive kit with fuel delivery and ignition upgrades.
• Modernizes older engines.

FEATURES:

• Speed density metering.
• Wide-band oxygen sensor included.
• Capability to control electric fans.
• Integrated ECU, MAP sensor, and fuel pressure regulator.
• Compatible with various distributor types.
• Includes 44mm venturi diameter throttle body.
• 80 lbs. per hour injectors.
• Includes a 340 lph in-tank fuel pump option.
