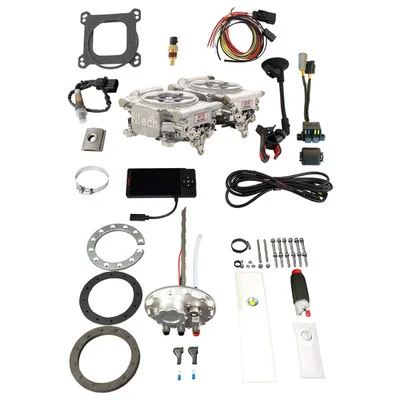

FiTech 2×4 625 HP Bright Aluminum EFI w/ In-Tank Module (36361)

Description

The FiTech 2×4 625 HP Bright Aluminum EFI w/ In-Tank Module (36361) is a comprehensive throttle body injection (TBI) system designed to bring modern electronic fuel injection to high-performance engines. Rated for up to 625 horsepower, this kit offers a significant upgrade over traditional carbureted setups. It includes an in-tank fuel pump, simplifying installation and ensuring consistent fuel delivery. The self-tuning ECU and wide-band oxygen sensor allow for precise fuel control, optimizing performance and efficiency. Compatible with various fuel types, including gasoline, alcohol, methanol, and flex fuel, the 36361 provides versatility for diverse engine applications. With included essential sensors and a complete wiring harness, this kit offers a straightforward EFI conversion.

KEY FEATURES AND BENEFITS:

• Comprehensive system: Includes all necessary components for easy installation.
• High performance: Capable of supporting engines up to 625 horsepower.
• Self-tuning ECU: Automatically adjusts fuel delivery for optimal efficiency.
• Versatile fuel compatibility: Works with gasoline, alcohol, methanol, and flex fuels.
• In-tank fuel pump: Ensures consistent fuel delivery and simplifies setup.
• Wide-band oxygen sensor: Provides accurate feedback for precise fuel control.

SPECIFICATIONS:

• Maximum horsepower: 625 HP
• Injection style: Throttle body
• Metering style: Speed density (Map-N)
• Throttle body mounting flange: Dual 4-barrel square bore
• Venturi diameter: 43 mm
• Airflow rate: 1700 cfm
• Injector size: 36 lbs./hr.
• Fuel type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Ensure compatibility with your engine and remove the existing carburetor and intake manifold.
• Install fuel system: Install the in-tank fuel pump and connect the fuel lines as per the provided instructions.
• Mount throttle body: Attach the FiTech 36361 throttle body to the intake manifold using the dual 4-barrel square bore flange.
• Install sensors: Place the oxygen, MAP, IAT, and TPS sensors in their designated locations.
• Connect wiring harness: Link the wiring harness to the ECU and all sensors, following the wiring diagram.
• Setup ECU: Install the calibration module and configure ECU settings based on your engine specifications.
• Initial start-up: Start the engine and let the self-learning ECU adjust the fuel mixture.
• Fine-tuning: Make any necessary adjustments to the calibration module for optimal performance.

BENEFITS OF USING THE FITECH 2X4 625 HP BRIGHT ALUMINUM EFI W/ IN-TANK MODULE (36361):

• Enhanced engine performance: Provides improved horsepower and overall efficiency.
• Better fuel economy: Increases fuel efficiency compared to carbureted systems.
• Easy installation: Simplified setup with included in-tank fuel pump.
• Diversified fuel usage: Compatible with a variety of fuel types for flexibility.
• Precise control: Offers accurate fuel management through a self-tuning ECU.
• Modern technology: Upgrades traditional setups with advanced electronic injection.

FEATURES:

• Eight venturis: Features eight 43mm venturis for optimal airflow.
• Polished aluminum: Constructed from polished cast aluminum for durability.
• Fuel injectors: Equipped with 36 lbs./hr. fuel injectors for high performance.
• Accurate metering: Uses speed density (MAP-N) for effective fuel metering.
• Comprehensive wiring: Comes with a complete wiring harness and labeled connections.
• Accurate feedback: Wide-band oxygen sensor for reliable performance data.
• User-friendly calibration: Incorporates a calibration module for easy adjustments.
• Electronic timing control: Compatible with systems that require electronic timing control.
