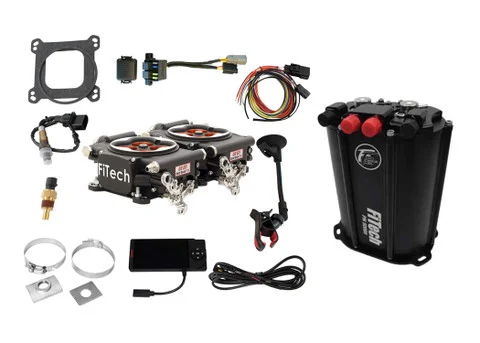

FiTech 2×4 1200 HP Matte Black EFI w/Force Fuel System (35464)

Description

The FiTech 2×4 1200 HP Matte Black EFI w/Force Fuel System (35464) provides a comprehensive solution for converting carbureted dual 4-barrel engines to modern electronic fuel injection. Designed for high-performance applications, this kit supports up to 1200 horsepower and is compatible with boosted engines. It includes everything needed for a complete installation, from the ECU and sensors to the fuel delivery system and touchscreen display.

KEY FEATURES AND BENEFITS:

• High Power Support: Designed for engines producing up to 1200 horsepower, ideal for performance builds.
• Dual 4-Barrel Throttle Bodies: Ensure adequate fuel delivery for demanding applications.
• 80 lbs/hr Injectors: Provide optimal fuel flow for high-performance needs.
• Force Fuel System: Includes dual internal pumps and regulators for consistent fuel pressure.
• User-Tunable System: Allows for precise adjustments and optimizations.
• Self-Tuning Capabilities: Simplifies initial setup for ease of use.
• Versatile Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuels.

SPECIFICATIONS:

• Maximum Horsepower: 1200 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: Dual 4-barrel square bore
• Venturi Quantity: 8
• Venturi Diameter: 43 mm
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Fuel Pump Flow Rating: 680 LPH
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Compatibility: Dual 4-barrel intake manifolds

HOW TO USE:

• Installation: Remove the existing carburetor and install the dual 4-barrel throttle bodies onto the intake manifold.
• Fuel System: Install the Force Fuel system, connecting it to the existing or new fuel pump.
• Wiring: Connect the wiring harness to the ECU and sensors, following the provided instructions.
• Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
• ECU Connection: Connect the touchscreen display to the ECU for monitoring and tuning.
• Initial Setup: Power on the system and use the touchscreen display to input basic engine parameters.
• Self-Tuning: Allow the system to self-tune, making adjustments as needed.
• Fine-Tuning: Use the Pro-tuning laptop software for advanced adjustments.

BENEFITS OF USING THE FITECH 2X4 1200 HP MATTE BLACK EFI W/FORCE FUEL SYSTEM (35464):

• Improved Engine Performance: Enhances overall power and efficiency.
• Precise Fuel Control: Ensures optimal power delivery for various applications.
• Simplified Installation: The complete kit makes setup straightforward.
• Reliable Fuel Delivery: The included Force Fuel system ensures consistent performance.

FEATURES:

• Integrated ECU: Mounted within one throttle body for easy installation.
• Touchscreen Display: Provides real-time monitoring for adjustments.
• External Fuel Pump and Surge Tank: For reliable fuel management.
• Speed Density (MAP-N) Fuel Metering: Ensures accurate fuel calculations.
• Compatibility with Boosted Applications: Designed for use with power adders.
• Pro-Tuning Laptop Software: For advanced performance tuning.
• Internal Dual Fuel Pumps: Equipped with dual internal regulators for consistent pressure.
• Black Anodized Throttle Body Finish: For a sleek and durable appearance.
