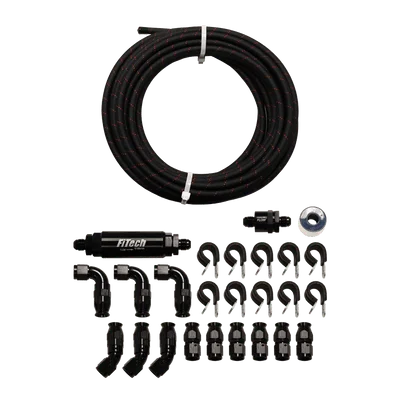

FiTech 20ft Black Covering Stainless Steel Hose Kit (51006)

Description

The FiTech 20ft Black Covering Stainless Steel Hose Kit (51006) provides a comprehensive fuel plumbing solution for automotive applications. This kit is designed to enhance fuel delivery systems with high-quality components and reliable performance. It includes 20 feet of -6 AN braided stainless steel fuel line, 12 -6 AN aluminum fittings, a 10-micron magnetic metal mesh fuel filter, and an inline check valve. This kit is compatible with various fuel types, including pump gas, methanol, ethanol, and alcohol.

KEY FEATURES AND BENEFITS:

• PTFE inner liner construction: Offers chemical resistance and longevity.
• Anti-static properties: Minimizes static electricity buildup.
• Outer nylon fire retardant mesh/cover: Protects against abrasion and heat.
• 20 feet of -6 AN braided stainless steel fuel line: Provides flexibility in routing.
• 12 -6 AN aluminum fittings: Ensures secure connections.
• 10-micron magnetic metal mesh filter: Serviceable and reusable for effective contaminant removal.
• Inline check valve: Prevents fuel backflow and maintains consistent pressure.
• Compatible with a wide range of fuels: Versatile for different applications.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 51006
• Fuel Line Type: Braided stainless steel (PTFE inner liner)
• Fuel Line Diameter: -6 AN
• Fuel Line Length: 20 feet (240 inches)
• Fittings: -6 AN aluminum (black)
• Filter: 10-micron magnetic metal mesh (serviceable and reusable)
• Check Valve: Inline check valve included
• Weight: 7 lbs
• Dimensions: 14 × 12.5 × 9.5 inches

HOW TO USE:

• Preparation: Ensure the vehicle’s fuel system is depressurized and cool. Gather all necessary tools and components from the FiTech 51006 kit.
• Fitting Installation: Install the -6 AN fittings onto the fuel pump, fuel rails, and other necessary connection points. Ensure all connections are tight.
• Fuel Line Routing: Route the 20-foot braided stainless steel fuel line from the fuel pump to the fuel rails, avoiding any sharp bends or potential pinch points.
• Filter Installation: Install the 10-micron fuel filter in-line, ensuring proper flow direction.
• Check Valve Installation: Install the inline check valve, ensuring proper flow direction.
• Connection: Connect the fuel line to the installed fittings, ensuring all connections are secure.
• Leak Check: Pressurize the fuel system and check for any leaks. Tighten any loose connections as needed.
• Final Inspection: Verify all components are properly installed and secured.

BENEFITS OF USING THE FITECH 20FT BLACK COVERING STAINLESS STEEL HOSE KIT (51006):

• Improved fuel flow and filtration: Enhances engine performance.
• Reliable fuel delivery: Maintains consistent pressure.
• Increased protection: Shields against contaminants and debris.
• Enhanced durability: Extends the longevity of the fuel system.
• Compatibility: Supports a wide range of fuels.
• Reduced risk of static electricity buildup: Increases safety.

FEATURES:

• Braided stainless steel construction for strength.
• PTFE inner liner for chemical resistance.
• Magnetic metal mesh filter for effective filtration.
• Inline check valve to prevent backflow.
• Black anodized aluminum fittings for corrosion resistance.
• External nylon fire retardant cover.
• Serviceable filter.
• Universal fitment.
