Description

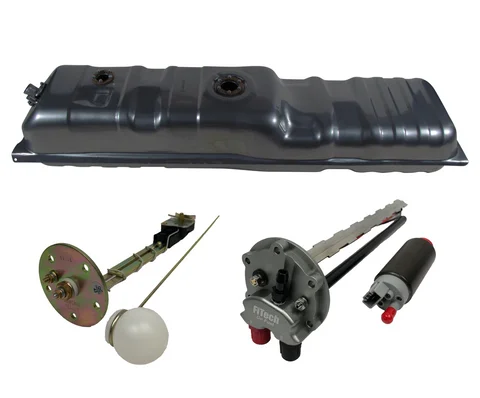

The FiTech 1982-91 GM Truck 340 LPH EFI Fuel Tank Kit (58017) provides a comprehensive solution for high-performance engine upgrades. This combination is ideal for those seeking to transition from traditional carburetors to modern electronic fuel injection, particularly in boosted applications. The 58017 system handles engines up to 1200 horsepower, while the included fuel tank kit ensures a reliable and high-volume fuel supply.
KEY FEATURES AND BENEFITS:
- High-Performance Capabilities: Designed for engines producing 250 to 1200 horsepower, specifically tailored for forced induction setups.
- Precise Control: Features 8 high-flow injectors and a wideband oxygen sensor for accurate fuel and air mixture control.
- Reliable Fuel Supply: The included fuel tank kit features a 340 LPH in-tank fuel pump capable of supporting up to 800 horsepower.
- Spacious Capacity: The 20-gallon capacity steel tank with internal baffling ensures consistent fuel delivery.
- Simplified Installation: Comes with -6 AN inlet/outlet fittings, a sending unit for factory gauges, and mounting straps.
- Improved Performance: Delivers consistent fuel pressure and enhances engine performance.
SPECIFICATIONS:
- EFI System (FiTech 58017):
- Horsepower Rating: 250-1200 HP
- Boost Rating: Up to 25 lbs
- Injector Count: 8
- Fuel Pressure Regulator: Built-in
- Control: Handheld color touchscreen
- Ignition Control: Yes
- Fuel Tank Kit:
- Tank Capacity: 20 gallons
- Pump Flow Rate: 340 LPH (90 GPH)
- Fitting Size: -6 AN
- Tank Material: Coated Steel
- Compatibility: 1982-1991 GM Trucks, Universal Fit Applications
- Sending Unit: OEM style
HOW TO USE:
- Tank Installation:
- Remove the existing fuel tank.
- Install the new FiTech fuel tank using the provided mounting straps.
- Connect the -6 AN fuel lines to the tank’s inlet and outlet fittings.
- Connect the sending unit wires.
- EFI System Installation:
- Remove the existing carburetor.
- Install the FiTech 58017 throttle body.
- Connect the fuel lines from the tank to the EFI system.
- Install the wideband oxygen sensor in the exhaust.
- Connect the handheld controller and wiring harness.
- Connect ignition wires.
- System Configuration:
- Use the handheld controller to input engine parameters.
- Start the engine and monitor fuel pressure and air/fuel ratios.
- Fine-tune the system using the handheld controller or pro-tuning software.
BENEFITS OF USING FiTech 1982-91 GM TRUCK 340 LPH EFI FUEL TANK KIT (58017):
- Improved Engine Performance: Enhances throttle response and power output.
- Precise Control: Allows for optimal fuel and ignition control.
- Simplified EFI Conversion: Provides a complete fuel delivery solution.
- Reliable High-Volume Fuel Supply: Ideal for high-horsepower engines.
- Reduced Risk of Fuel Starvation: Baffled tank design ensures fuel availability.
- Consistent Fuel Pressure: More reliable than external pumps.
FEATURES:
- Enhanced Fuel Atomization: Annular discharge design for improved combustion.
- Data-Logging Capability: Allows for detailed performance analysis.
- Recessed Mounting: For pump and sending unit to provide added clearance.
- Internal Baffles: Maintain consistent fuel delivery during operation.
- Corrosion Resistance: Steel tank with powder coat finish.
- Fan Control Capability: Manage engine cooling efficiently.
- Ignition Timing Control: Adjust ignition timing for performance tuning.
