Description

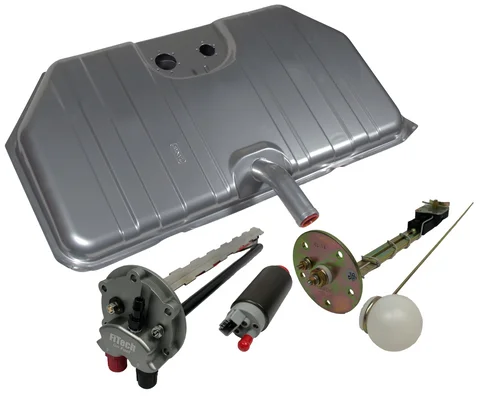

The FiTech 1969 Chevy Camaro Notched EFI Fuel Tank Kit (58024) provides a comprehensive solution for upgrading your 1969 Chevrolet Camaro to a modern electronic fuel injection system. This kit is designed for a precise fit, featuring a notched corner tank to accommodate the specific dimensions of the 1969 Camaro. It includes all necessary components to facilitate a seamless transition to EFI, ensuring reliable fuel delivery for high-performance applications.
KEY FEATURES AND BENEFITS:
- Simplified EFI Conversion: Engineered to streamline the EFI conversion process.
- Direct-Fit Steel Tank: Features internal baffles to prevent fuel starvation.
- High-Performance Fuel Pump: In-tank module houses a 340 LPH fuel pump capable of supporting up to 800 horsepower.
- Secure Connections: -6 AN inlet/outlet ports ensure leak-free fuel line connections.
- Recessed Design: Provides added clearance for the sending unit and pump mount.
- Quality Assurance: Partnership with TANKS Inc. ensures reliability and durability.
SPECIFICATIONS:
- Brand: FiTech Fuel Injection
- Part Number: 58024
- Tank Capacity: 18 gallons
- Pump Flow Rate: 340 LPH (90 GPH)
- Pump Support: Up to 800 HP
- Fitting Size: -6 AN
- Material: Steel, powder-coated silver
- Included: Tank, 340 LPH pump module, sending unit, mounting straps
- Compatibility: 1969 Chevrolet Camaro (Notched Corner)
HOW TO USE:
- Remove the existing fuel tank and sending unit from your 1969 Camaro.
- Install the new FiTech 58024 tank using the provided mounting straps.
- Attach the included sending unit to the tank.
- Insert the FiTech 340 LPH pump module into the recessed mount within the tank.
- Connect the -6 AN fuel lines to the inlet and outlet ports.
- Wire the fuel pump and sending unit according to the manufacturer’s instructions.
- Verify all connections are secure and leak-free.
- Fill the tank with fuel and test the system for proper operation.
BENEFITS OF USING FITECH 1969 CHEVY CAMARO NOTCHED EFI FUEL TANK KIT (58024):
- Eliminates External Pumps: In-tank pump design reduces noise and simplifies installation.
- Consistent Fuel Pressure: High-flow 340 LPH pump ensures reliable fuel pressure for EFI systems.
- Prevents Fuel Starvation: Internal baffling allows for consistent fuel delivery during aggressive driving.
- Reliable Connections: -6 AN fittings provide secure, leak-free connections.
- Time-Saving Installation: Complete kit simplifies the conversion process, saving time and effort.
FEATURES:
- Internal Baffling: For consistent fuel delivery during operation.
- Recessed Mounting: For the pump and sending unit, providing added clearance.
- Secure Fittings: -6 AN male O-ring fittings for reliable connections.
- OEM Style Baffled Tank: Designed for optimal performance.
- Durable Finish: Powder-coated tank for corrosion resistance.
- Quality Partnership: Partnered with Tanks Inc. for high-quality construction.
- Included Filler Neck: Ensures compatibility with existing refueling systems.
