FiTech 1969-1970 Mustang Easy Street 600HP EFI Total Package (38004)

Description

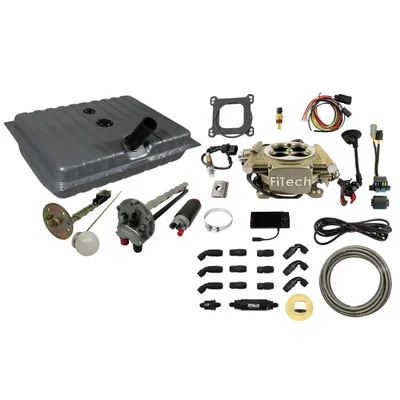

The FiTech 1969-1970 Mustang Easy Street 600HP EFI Total Package (38004) is designed to transform your 1969-1970 Ford Mustang from a traditional carburetor setup to modern electronic fuel injection (EFI). This all-inclusive kit simplifies the upgrade process, providing a single part number solution for enhanced performance and reliability. It features the “Easy Street” 600 horsepower throttle body, a direct-fit fuel tank with an internal pump module, and all necessary components for a seamless installation.

KEY FEATURES AND BENEFITS:

• Improved Performance: Delivers enhanced acceleration, throttle response, and overall engine performance.
• Self-Learning ECU: Optimizes fuel delivery for smooth operation.
• Consistent Fuel Supply: Includes a fuel tank and pump for reliable fuel delivery.
• Reliable Connections: Complete steel braided hose kit and AN-style fittings included.
• Diagnostic Features: Built-in diagnostics help identify potential issues.
• Warranty: Comes with a 3-year limited warranty for peace of mind.

SPECIFICATIONS:

• Maximum horsepower: 600 HP
• Injection style: Throttle body
• Timing control: No
• ECU included: Yes
• Fuel pump included: Yes (in-tank)
• Metering style: Speed density (MAP-N)
• Throttle body mounting flange: 4-barrel square bore
• Injector size: 80 lbs/hr
• Fuel pump flow rating: 255 lph
• Venturi diameter: 43 mm
• Fuel type: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

• Remove Existing Carburetor: Disconnect and remove the existing carburetor and associated fuel lines.
• Install Fuel Tank: Replace the original fuel tank with the included FiTech fuel tank and internal pump module.
• Mount Throttle Body: Install the FiTech throttle body onto the intake manifold using the 4-barrel square bore flange.
• Connect Fuel Lines: Connect the steel braided fuel lines and fittings between the fuel tank and throttle body.
• Install Sensors: Install the provided oxygen sensor, coolant temperature sensor, and other necessary sensors.
• Connect Wiring Harness: Connect the wiring harness to the ECU, sensors, and power source.
• Initial Setup: Use the handheld controller to input basic engine parameters.
• Start Engine: Start the engine and allow the self-learning ECU to calibrate the fuel delivery.
• Fine Tuning: If needed, make minor adjustments using the handheld controller.

BENEFITS OF USING THE FITECH 1969-1970 MUSTANG EASY STREET 600HP EFI TOTAL PACKAGE (38004):

• Enhanced engine performance and responsiveness.
• Improved fuel efficiency compared to traditional carburetors.
• Simplified installation with a complete, direct-fit kit.
• Reliable fuel delivery with an in-tank fuel pump.
• Reduced maintenance and improved reliability.
• Self-learning calibration for optimal performance.

FEATURES:

• Classic Aesthetic: Gold finish on the throttle body enhances vintage appeal.
• Built-in Pressure Regulator: Ensures consistent fuel pressure.
• High-Flow Filter: Serviceable fuel filter for effective filtration.
• Accurate Monitoring: Wideband O2 sensor for precise fuel monitoring.
• User-Friendly Controller: Handheld controller for setup and diagnostics.
• Complete Wiring Harness: Included for easy connections.
• In-Tank Pump: Fuel pump included for effortless installation.
• Direct Replacement: Designed as a direct replacement for 4-barrel carburetors.
