FiTech 1000HP Oval Port EFI 4150 Flange Uni Black (30-11-411)

Description

The FiTech 1000HP Oval Port EFI 4150 Flange Uni Black (30-11-411) is designed to provide modern electronic fuel injection to Big Block Chevy engines equipped with oval port cylinder heads. This complete kit replaces traditional carbureted systems, offering enhanced control and performance. With a focus on ease of installation and operation, the system features self-learning capabilities and a user-friendly interface. It supports a wide range of fuels, including gasoline, E85, alcohol, and methanol, making it versatile for various applications.

KEY FEATURES AND BENEFITS:

• Provides electronic fuel injection: For Big Block Chevy engines.
• Rated for up to 1,000 horsepower: When using gasoline.
• Designed for oval port cylinder heads: Ensures compatibility.

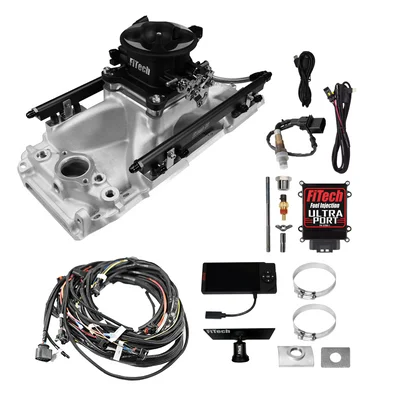

• Complete kit: Includes intake manifold, fuel rails, injectors, ECU, sensors, and wiring harness.
• Self-learning capabilities: Optimizes performance automatically.
• Wide fuel compatibility: Supports gasoline, E85, alcohol, and methanol fuels.
• Includes a 4.5-inch display: For monitoring and adjustments.
• Utilizes a 4150 flange throttle body.
• Includes a 3-Bar TMAP Sensor.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port.
• Maximum Horsepower (Gas): 1,000 HP.
• Throttle Body Mounting Flange: 4-barrel square bore (4150).
• Intake Material: Aluminum.
• Injector Size: 80 lbs/hr.
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N).
• Venturi Diameter: 44.00 mm.
• Airflow Rate: 1000 cfm.
• Compatibility: Big Block Chevy engines with oval port cylinder heads and standard deck height.

HOW TO USE:

• Remove the existing carburetor and intake manifold.
• Install the FiTech intake manifold onto the engine.
• Mount the throttle body and connect the fuel rails.
• Install the fuel injectors and connect the wiring harness.
• Mount the ECU and connect the sensors (oxygen, MAP, IAT, TPS).
• Connect the 4.5-inch display.
• Connect power and ground to the system.
• Verify all connections and check for leaks.
• Start the engine and allow the ECU to self-learn.
• Use the display to monitor and adjust settings as needed.

BENEFITS OF USING THE FITECH 1000HP OVAL PORT EFI 4150 FLANGE UNI BLACK (30-11-411):

• Improved Fuel Efficiency: Enhanced performance.
• Enhanced Engine Control: Better tuning capabilities.
• Reduced Emissions: Compared to carbureted systems.
• Consistent Performance: Across varying conditions.
• Easier Engine Starting: Smoother idle.
• Increased Horsepower: Overall power improvement.

FEATURES:

• Cast aluminum intake manifold.
• Black finish throttle body.
• 80 lbs/hr fuel injectors.
• Self-learning ECU.
• Complete wiring harness and sensor kit.
• 4 Venturi throttle body design.
• Compatible with forced induction and nitrous oxide.
