FiTech 1000HP Oval Port EFI 4150 Flange Classic Black (30-11-415)

Description

The FiTech 1000HP Oval Port EFI 4150 Flange Classic Black (30-11-415) is designed to provide precise fuel delivery for high-performance Chevy big block engines with oval port cylinder heads. This complete multi-port electronic fuel injection system supports up to 1000 horsepower when using gasoline, offering an upgrade from traditional carbureted setups. The system features self-tuning capabilities, allowing for easier setup and optimized performance.

KEY FEATURES AND BENEFITS:

• Multi-Port Fuel Injection: Provides accurate fuel delivery to each cylinder, improving throttle response and fuel efficiency.
• 1000 HP Capability: Designed for high-performance applications, supporting up to 1000 horsepower with gasoline.
• Self-Tuning Functionality: The system automatically adjusts fuel parameters for optimal performance.
• Complete System: Includes all necessary components for installation, excluding fuel pump and fuel pressure regulator.
• User Tunable: Offers the ability for manual adjustments to fine-tune fuel and timing settings.

SPECIFICATIONS:

• Engine Compatibility: Chevy Big Block (Oval Port)
• Maximum Horsepower (Gas): 1000 hp
• Throttle Body: 4150 Flange, 1000 CFM
• Injection Style: Multi-Port
• Fuel Compatibility: Gasoline, E85, Alcohol, Methanol, Flex Fuel
• Timing Control: Yes
• Metering Style: Speed Density (MAP-N) or speed throttle (Alpha-N)
• Injectors: 80 lbs/hr
• Venturi Diameter: 44.00 mm
• MAP Sensor: 3-Bar TMAP
• Compatibility: Chevy Big Block engines with oval port heads, standard deck height.

HOW TO USE:

• Preparation: Remove existing carburetor and intake manifold.
• Installation: Install the FiTech intake manifold onto the engine.
• Fuel Rail and Injector Installation: Mount the provided fuel rails and injectors.
• Sensor Installation: Install the MAP, IAT, TPS, and oxygen sensors.
• Wiring: Connect the wiring harness to the ECU and sensors.
• Throttle Body Installation: Mount the 4150 flange throttle body.
• ECU Setup: Connect the handheld touchscreen monitor and follow the on-screen instructions for initial setup.
• Fuel System Connection: Connect the fuel lines to a suitable fuel pump and pressure regulator (sold separately).
• Initial Start-Up: Start the engine and allow the self-tuning feature to begin adjusting fuel parameters.
• Fine-Tuning: Make any necessary manual adjustments using the handheld monitor.

BENEFITS OF USING THE FITECH 1000HP OVAL PORT EFI 4150 FLANGE CLASSIC BLACK (30-11-415):

• Improved Engine Performance: Enhanced throttle response.
• Enhanced Fuel Efficiency: Compared to carbureted systems.
• Easier Engine Startup: Smoother idle.
• Ability to Handle High-Horsepower Applications.
• Reduced Emissions: Through precise fuel control.
• Flexibility: To use multiple fuel types.

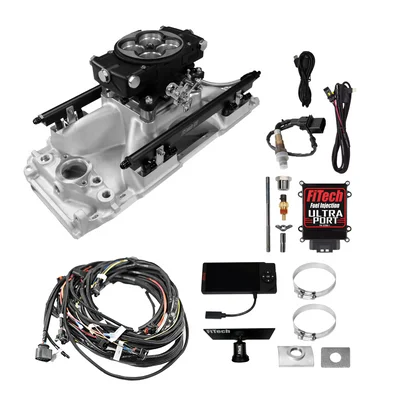

FEATURES:

• Cast aluminum intake manifold with a natural finish.
• Black finish 4150 throttle body.
• 80 lbs/hr fuel injectors for high fuel flow.
• Included 4.5-inch handheld touchscreen monitor for system adjustments.
• Complete wiring harness for easy installation.
• Oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor all included.
• 4 Venturi throttle body design.
• 1000 CFM airflow rate.
• Multi-port fuel rails.
