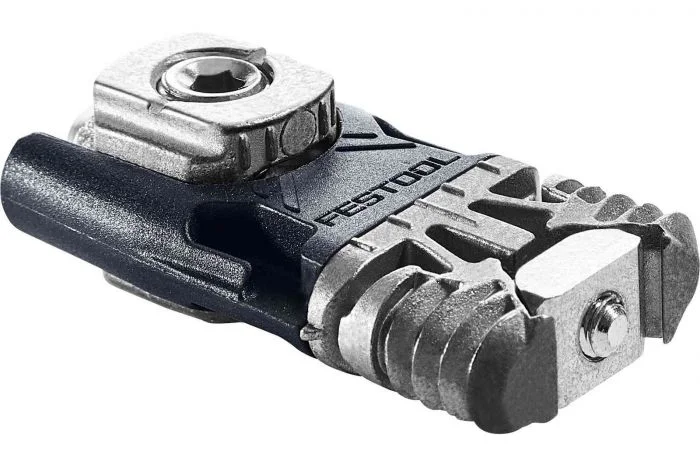

203166, Festool Corner connection KV D8/50
The new DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.
Features:
- The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
- The connectors’ large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
- The flush-screwed fixture elements protect each furniture component from being scratched
- Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
- The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
- for 50 corner joints with the DF 500
- the DOMINO/DOMINO KV D8/50 connector is positioned both in the cupboard panel and the base of the structure with the DOMINO jointer DF 500
Specifications:
- Joint fixture (8 mm DOMINO dowel cross-cuts) D8
- Panel thickness 18 – 28 mm
- Dino routing depth for side part 15 mm
- DOMINO routing depth for base part 28 mm
- Drilling diameter in base part 15 mm
Includes:
- 50x Split anchor
- 50x Bolt with M4 thread
- 50x Plastic trays
- 50x Cross anchor with threaded pin
- without cover caps
- in carton
Specifications
| Festool Corner Connection KV D8/50 for DF 500, 50-Pack 203166 | |
| APPLICATION | Wood Working |
| Brand | Festool |
| CONSUMABLE TYPE | Connectors |
| PRODUCT TYPE | Consumables |
| TOOL SUB-TYPE | Joiners – Domino Joiners |
| TOOL TYPE | Joiners |
| GTIN | 4014549302736 |
