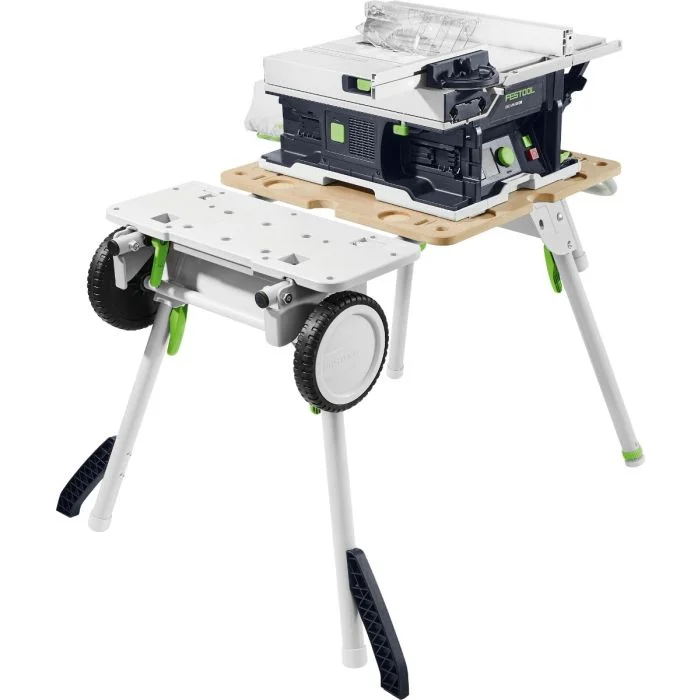

577372, Festool CSC SYS 50 EBI-Basic-Set Cordless Table Saw with Kapex Underframe

The Festool CSC SYS 50 EBI-Basic-Set Cordless Table Saw with Kapex Underframe is a powerful and versatile tool that provides precise and accurate cutting results. This cordless table saw is designed to fit into a Systainer for easy transportation and storage. With its compact size and advanced features, it is the ultimate portable precision tool for both professional and DIY users.

CSC SYS 50 EBI Cordless Table Saw

The Festool CSC SYS 50 EBI Cordless Table Saw is incredibly compact and versatile. It is designed to produce shop-quality cuts on the jobsite. With parallel cuts of up to 11″ (280 mm), a cross-cut width of up to 17-3/4″ (450 mm), and bevel cuts from -10° to 47°, this table saw can handle a wide range of cutting tasks. It is powered by a 2×18 V dual-battery system in combination with a brushless EC-TEC motor, providing maximum power and torque, comparable to a corded tablesaw.

This cordless table saw features a unique digital operation that ensures maximum precision with accuracy within a tenth of a millimeter (1/256″). The height and angle can be set accurately to a tenth of a millimeter (1/256″) at the press of a button, providing consistent and repeatable cuts. The robust guidance system includes a rip fence, a miter gauge, and a sliding table for precise and controlled cutting.

UG-CSC-SYS Kapex Underframe

The Festool UG-CSC-SYS Kapex Underframe is specially designed to work in conjunction with the CSC SYS 50 cordless table saw. This underframe provides a stable and secure worktable with built-in support for ripping and cross-cutting. It can be easily transported as it collapses for convenient storage and transportation. With its foldaway legs and perforated top with clamps, it provides a portable workbench solution on the go.

The UG-CSC-SYS Kapex Underframe is made to move and save space. It serves as a hand cart, allowing easy transportation of not just the cordless table saw but also other Systainers to the point of use. It folds together to take up minimal space in the vehicle, ensuring that you always have this clever assistant on board.

This underframe is the perfect pair for the CSC SYS 50 cordless table saw. It securely positions the table saw on the worktop via suitable holes and raises it to an ergonomic working height. The bottom plate of the underframe offers a material support surface for rip and cross-cuts, especially for long materials.

Features:

• Versatile: This cordless table saw allows parallel cuts up to 11″ (280 mm) and cross-cut widths of up to 17-3/4″ (450 mm). It also enables bevel cuts from -10° to 47°.
• Precise: The digital operation of this table saw allows height and angle adjustments with maximum precision, accurate to within a tenth of a millimeter (1/256″). The guidance system ensures precise and controlled cuts.
• Powerful: The 2×18 V dual-battery system combined with the brushless EC-TEC motor provides maximum power and torque, comparable to a corded tablesaw.
• Durable: The CSC SYS 50 EBI-Basic-Set Cordless Table Saw is made with high-quality materials and designed to withstand heavy-duty use. It is built to last and deliver reliable performance.
• Portable: The compact size and lightweight design of this table saw, combined with the collapsible UG-CSC-SYS underframe, make it easy to transport and store. It is ideal for jobsites and mobile applications.

Specifications:

Battery voltage: 2 x 18 V

Idle engine speed: 4,500 – 6,800 RPM

Arbor: 3/4″ (20 mm)

Bevel angle: -10 – +47 °

Cutting height: 0° 0 – 1-7/8″ (0 – 48 mm)

Cutting depth: 45° 0 – 1-11/32″ (0 – 34 mm)

Cutting height: -10° 13-16″ – 1-1/4″ (21 – 32 mm)

Mitre angle: 0 – 70 °
