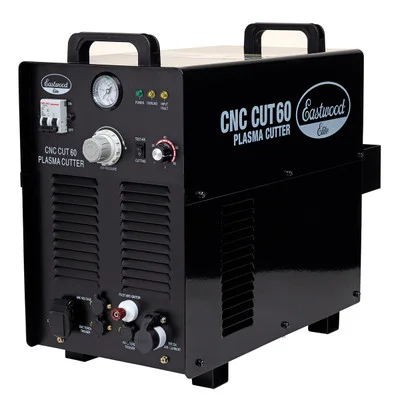

Eastwood Elite CNC Cut 60 Plasma Cutter for 4×4 CNC Plasma Table (55132) (55133)

Description

Eastwood Elite CNC Cut 60 Plasma Cutter for 4×4 CNC Plasma Table (55133) is a high-performance plasma cutting solution designed for precision metalwork. Built with the power to cut through 3/8″ steel plates effortlessly, this 60 Amp plasma cutter is the ideal match for your 4×4 CNC plasma table. Its inverter technology ensures clean cuts with excellent accuracy.

It operates on a 240V AC input and features a high-frequency arc ignition system, allowing you to start your cuts with precision. Its 60% duty cycle at 63 amps provides uninterrupted performance, and with a 100% duty cycle at 49 amps, it is built for demanding, high-output tasks.

• Specifications and Dimensions
  • Power Input: 240V, 50/60 Hz
  • Air Input: ¼” NPT Female Thread
  • Output Current Adjustment: 10-63 Amps
  • Duty Cycle: 60% @ 63 Amps; 100% @ 49 Amps
  • Plasma Torch and Hose Length: 12.3 ft
  • Ground Cable Length: 9 ft
  • Weight: 54.5 lbs
  • Dimensions: 10.83” x 22.44” x 18.70”



• Key Features and Benefits
  • 60 Amp plasma cutter designed for 4×4 CNC plasma tables
  • Clean cuts through 3/8″ steel plates with precision
  • High-frequency arc ignition for accurate cutting
  • Operates on 240V AC input for reliable power
  • 60% duty cycle at 63 amps, 100% at 49 amps for continuous operation
