Description

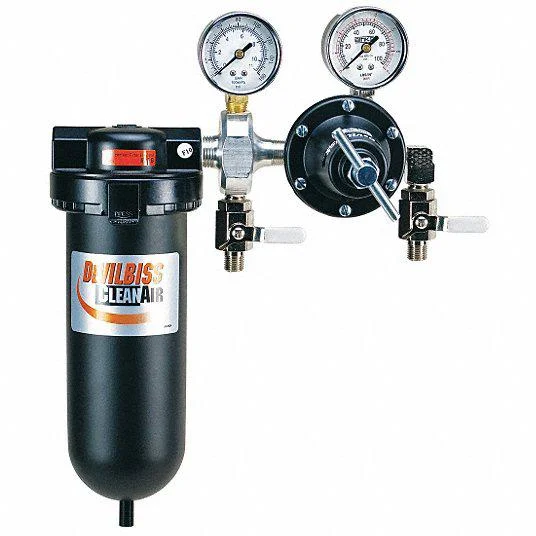

DeVilbiss HFRL-508 Clean Air / Air Control 5 Micron Filtering Capacity 60 CFM Flow Rate Inlet Port Size: 1/2″ NPT(F) One Regulator & Gauge Line Pressure Guage One Regulated Outlet One Non-regulated Outlet
Air Connections Model HFRL-508:
Regulated
(1) 1/4″ NPS(M)
(1) Plugged Port
Non-Regulated
(1) 1/4″ NPS(M)
Part list
1HAF-502 Air Filter, 100 CFM, See Fig.2 1
2 HAF-21 Cross Manifold 1
3 GA-288 Air Gauge, 0-160 psi (main line) 1
4 83-2727 Air Gauge, 0-100 psi (regulated) 1
5 HAR-507 Air Regulator (See Fig. 3) 1
6 — 1/4″ Street Elbow, 90° 1
7 VA-542 Ball Valve 2
| Technical Specifications | |
| Item – Filter-Regulators | Filter-Regulator |
| For Removal Of | Oil Aerosols, Particles, Water |
| Connection Size – Air Treatment | 1/2 in NPT |
| Filter Rating – Air Treatment | 5 micron |
| Max. Incoming Pressure – Air Treatment | 150 psi |
| Max. Flow – Air Treatment | 50 cfm |
| Adjustment Range – Air Treatment | 0 to 125 psi |
| Bowl Material – Air Treatment | Plastic |
| Size – Air Treatment | Standard |
| Bowl Size – Air Treatment | 17.0 oz |
| Max. Temp. | 150 Degrees F |
| Gauge Port Size | 1/4 in NPT |
| Adjustment Knob | Plastic |
| Drain Type | Automatic |
| Overall Height | 12 in |
| Overall Width | 10 in |
| Includes | (1) Air Regulator |
