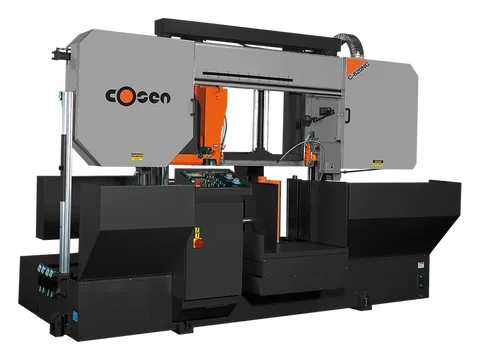

Cosen Fully Automatic Horizontal Dual Column Band Saw (C-620NC)

Description

Product Description for Cosen C-620NC Horizontal Band Saw

The Cosen C-620NC Horizontal Band Saw is a high-performance machine designed for industrial applications. With its advanced cutting capabilities and robust construction, it is an essential addition to any heavy-duty workshop.

Key Features:

• Cutting Capacities:
  • Round Capacity: 24.4″
  • Rectangular Capacity (HxW): 24.4″ x 30″
• Blade Specifications:
  • Speed: Variable blade speeds ranging from 50 to 328 FPM
  • Size: Blade dimensions are 23′ 7″ in length, 2″ in width, and available in .050″ or .063″ thickness
  • Motor: Powered by a 10 HP blade motor for superior cutting performance
• Cooling and Hydraulic System:
  • Coolant Motor: 1/4 HP to maintain blade temperature during operation
  • Coolant Tank Capacity: 22.5 gallons for continuous cooling
  • Hydraulic Tank Capacity: 10.57 gallons to support efficient hydraulic operations
• Dimensions and Weight:
  • Workbed Height: 29.5″ for ergonomic operation
  • Weight: Sturdy construction weighing 11,000 lbs
  • Floorspace: Dimensions of 160.5″ x 82.4″ x 94.1″ for a substantial footprint

Precision and Power:
The C-620NC is engineered for precision cutting with its large cutting capacities and variable blade speeds, making it ideal for diverse industrial applications. The powerful 10 HP blade motor ensures efficient and accurate cuts, while the robust build guarantees durability and long-term use.

Advanced Cooling and Hydraulic Systems:
Equipped with a 22.5-gallon coolant tank and a 1/4 HP coolant motor, the C-620NC provides continuous cooling to maintain blade performance. The 10.57-gallon hydraulic tank supports the machine’s hydraulic functions, ensuring smooth and reliable operations.

Ergonomic Design:
The workbed height of 29.5 inches is designed for user comfort, allowing for easy and efficient operation. Despite its powerful capabilities, the C-620NC’s substantial footprint ensures stability and ease of use in any industrial setting.

Enhance your workshop’s cutting capabilities with the Cosen C-620NC Horizontal Band Saw, where power and precision meet industrial-grade performance.

Specifications Summary:

• Round Capacity: 24.4″
• Rectangular Capacity: 24.4″ x 30″
• Blade Speed: 50 – 328 FPM
• Blade Size: 23′ 7″ x 2″ x .050″ / .063″
• Blade Motor: 10 HP
• Coolant Motor: 1/4 HP
• Coolant Tank: 22.5 gal
• Hydraulic Tank: 10.57 gal
• Workbed Height: 29.5″
• Weight: 11,000 lbs
• Floorspace: 160.5″ x 82.4″ x 94.1″

Note: This product is not eligible for returns.
